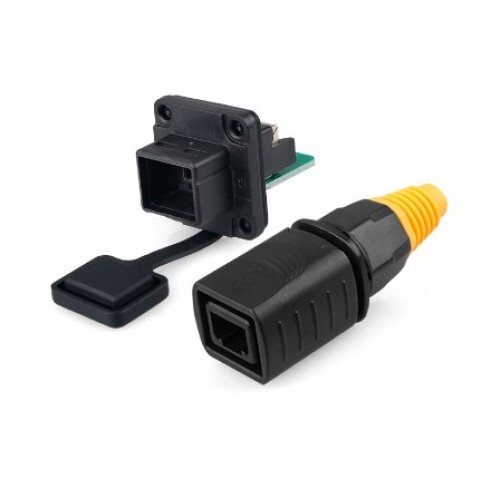

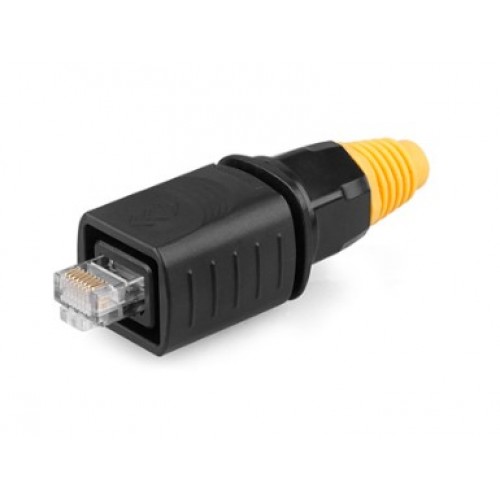

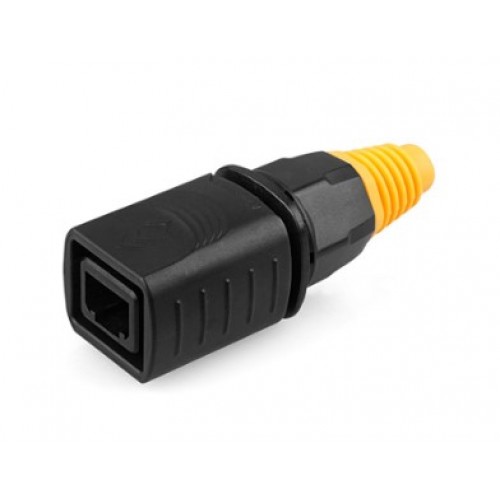

Sealed connector series YT-RJ45-CPE-05-001 - cable plug with cable cap, industrial connectors of this series offer solutions for signal transmission in difficult Internet conditions - for transmitting high-quality audio and video signals. These connectors work perfectly with DMX protocols for lighting control. Stage equipment can also be controlled using these connectors.
According to EIA568B and various ISO/IEC11801 certifications, it is assigned Level D or CAT 3e, compatible with CAT5e. Data transfer speed reaches 10. Gbps. Connectors are resistant to high-frequency interference.
Characteristics of sealed RJ45 series connector YT | |
| Connector type | Cable plug |
| Number of contacts | 8 |
| Rated current | 1.5 A |
| Contact resistance | < 30 mOhm |
| Insulation resistance | > 500 MΩ |
| Cable diameter | Φ 5.5 - 7.0 mm |
| Cable characteristics | 0.15-0.2 mm2 / 26-24 AWG |
| Number of connections | > 500 |
| Operating temperature range | -40°С ... +80°С |
| Protection class | IP65 / IP67 |
| Flammability class | UL94-V0 |
| Material | high-quality plastic |
| Certificates | CE, CCC, RoHS, ISO9001 |

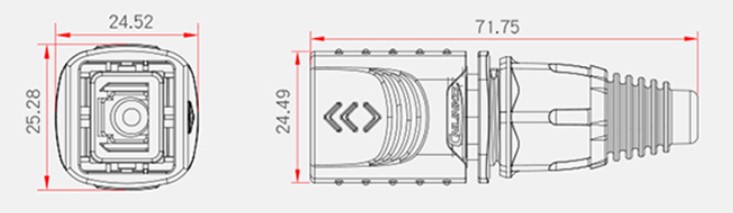

| Dimensions of the sealed connector RJ45 | |
| RJ45 cable plug | |
 |
