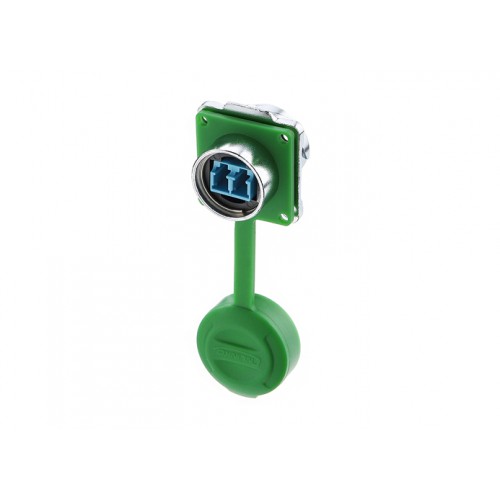

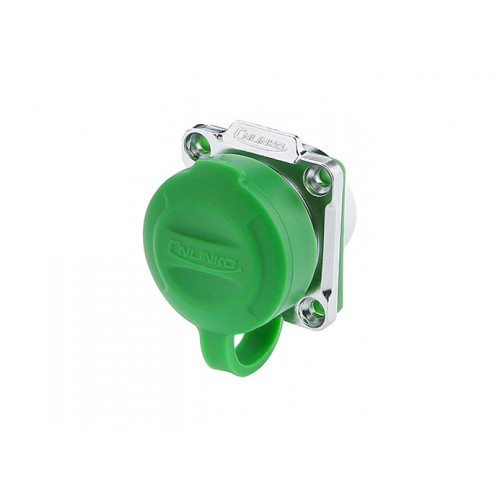

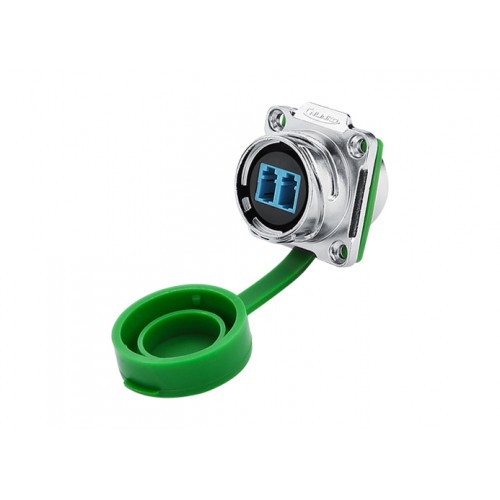

LC-sealed optical connector duplex DH-24-J/LC/213/SX-43-401 - the optical socket has a mounting diameter 24mm, this is a manual connection connector, cylindrical, internal volumetric installation, connects optical fiber. This type of connector refers to connections with increased installation density.
Response part of the panel socket DH-24-J/LC/213/SX-43-401 is a cable plug DH-24-C/LC/016/PE-43-001
"Duplex" - two connectors in one case.
A feature of the LC fiber optic connector of the DH-24 series is abayonet (quick release) connection method. The optical connector has 2 light guides with a diameter of 1.25 mm. The tip material is zirconium ceramic, which significantly reduces losses (dB) at 1300 nm and equal to 0.1.
Operating temperatureof the connector is guaranteed at temperatures from "-" 40C to "+" 80C
LC connector housing type - cable and block. Connector type - plug or socket.
LC connectors of the DH-24 series are moisture and dustproof and correspond to the degree of protection IP67, which guarantees the operation of the connectors when immersed in water to a depth 1m for 30 minutes.
Optical connector DH24 - LC
Characteristics of sealed LC connectors
| Wire specification | 0.15mm2～0.22/26-24AWG |
| Wire diameter range | ⌀5.5mm ~ ⌀7mm |
| Number of wires | 2 |
| Contact resistance | ＞500MΩ |
| Protection level | IP65/IP67 |
| Work resource | ≥500 |
| Operating temperature | -40℃～80℃ |
| Connection type | mount |
LC sealed connector dimensions | |
| Cable plug | Block socket |
 |   |
