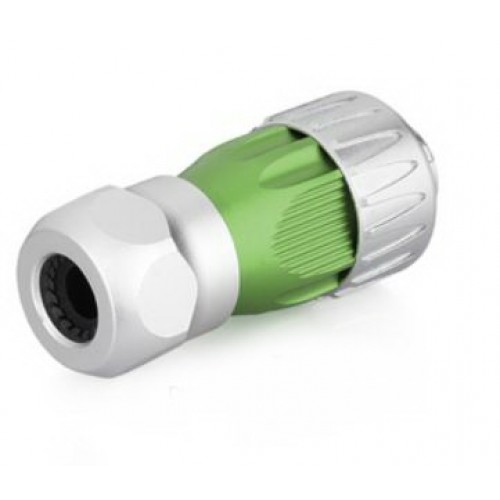

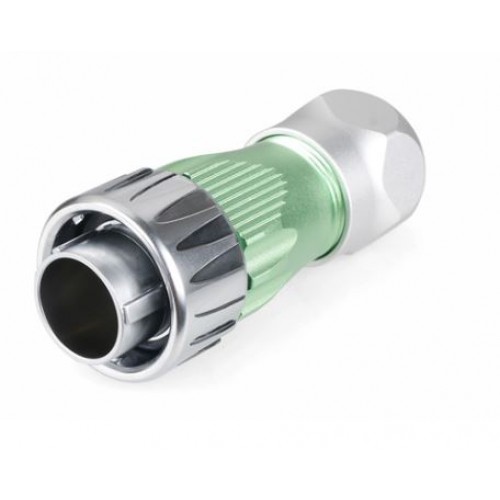

LC duplex sealed optical connectorDH-24-C/LC/016/PE-43-001 - cable plug without cable of bayonet (quick-dismount) type, has a mounting diameter 24 mm, this is a manual connection connector , cylindrical, internal volumetric installation, connects optical fiber. This type of connector refers to connections with increased installation density.
The mating part of the cable plug DH-24-C/LC/016/PE-43-001 is a panel socket DH-24-J/LC/213/SX-43-401
"Duplex" - two light guides in one case.
A feature of the LC connectors of the DH-24 series is bayonet (quick release) connection method . The optical connector has 2 light guide diameter 1.25 mm.
Tip material - zirconium ceramics , which significantly reduces losses (dB) at 1300 nm and equals 0.1.
Working temperature of the connector is guaranteed at temperatures from "-" 40C to "+" 80C.
LC connector housing type - cable and block . Connector type - plug or rosette .
DH-24 series LC connectors are moisture and dustproof and correspond to the degree of protection IP67 , which guarantees the operation of the connectors when immersed in water to a depth of 1 m for 30 minutes .
Characteristics of sealed LC connectors
| Wire specification | 0.15mm2～0.22/26-24AWG |
| Wire diameter range | ⌀5.5mm ~ ⌀7mm |
| Number of wires | 2 |
| Contact resistance | ＞500MΩ |
| Protection level | IP65/IP67 |
| Work resource | ≥500 |
| Operating temperature | -40℃～80℃ |
| Connection type | mount |
LC sealed connector dimensions | |
| Cable plug | Block socket |
 |   |
