Developed specifically for industrial purposes, the YU- series of connectors USB provides reliable security for USB connections. These connectors have excellent isolation characteristics and support both USB2.0 and USB3.0.
With built-in external operations, they allow easy connection and hot-swapping , and do not require access inside the housing to connect to the electrical connection block. This makes them the ideal choice for convenient and reliable connections, fully satisfying your connection block needs.
These connectors are designed for a variety of industrial applications and meet global standards on environmental protection for industrial equipment.

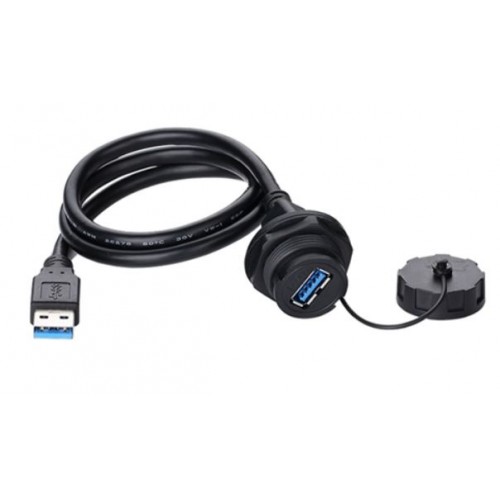

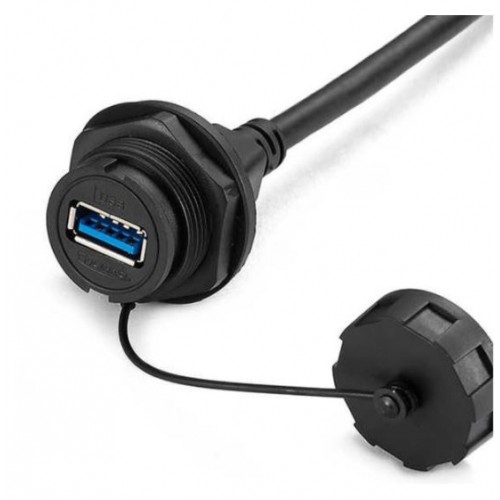

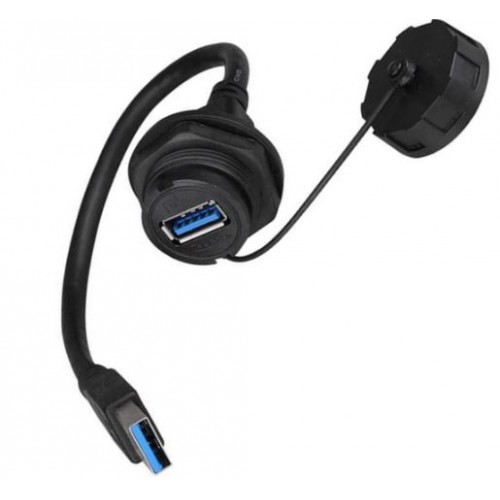

Completed with a protective cap. Cable length - 1m.
| Characteristics of the YU-USB3-FS-MP-1M-001 connector | |
| Connector type | Cable |
| Interface | USB, USB 3.0, USB 3.0 Typ A female, USB 3.0 Typ A male |
| Connector view | mother-father |
| Color | black |
| Length | 1m |
| Minimum operating temperature | -40°C |
| Maximum operating temperature | +80°C |
| Connection resource | 500 |
| Degree of protection according to EN60529 2000 | IP67 |
 |
| |
 |
| |
 |
 |
