Developed specifically for industrial purposes, the YU- series of connectors USB provides reliable security for USB connections. These connectors have excellent isolation characteristics and support USB2.0.

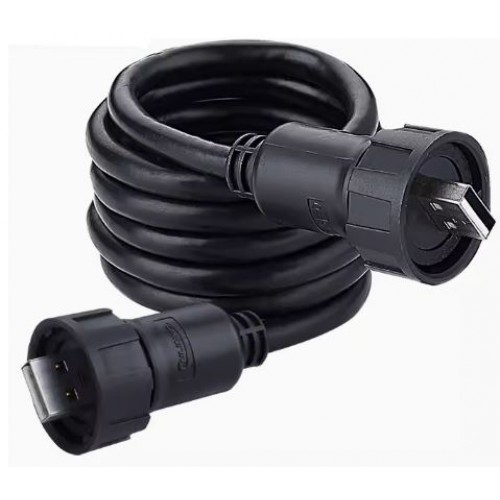

The mating part to the YU-USB2-MP-MP-1M-001 connector can be YU-USB2-FS-MP-0D3M-001 or YU-USB2-JSX-01-001 or YU-USB2-JSX-01-002

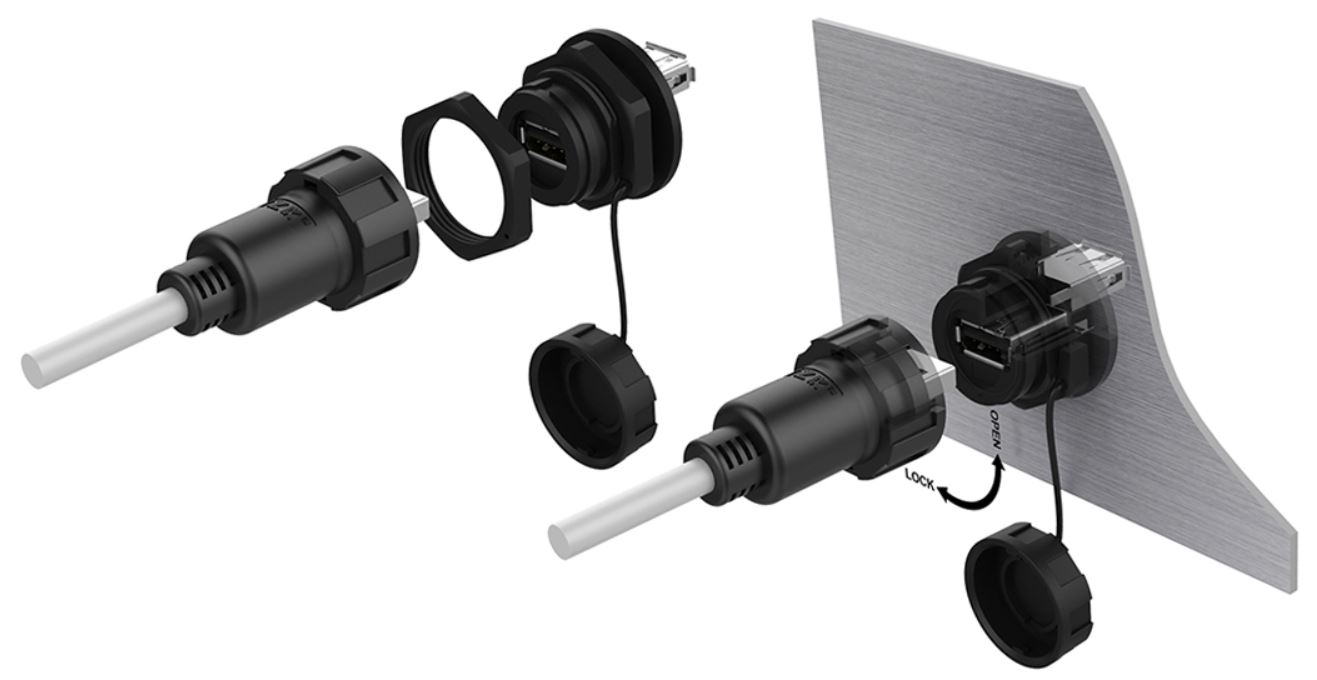

With built-in external operations, they provide simple pluggable and hot-swappable, and do not require access inside the housing to connect to the electrical connection block. This makes them the ideal choice for convenient and reliable connections, fully satisfying your connection block needs.
These connectors are designed for a variety of industrial applications and meet global standards on environmental protection for industrial equipment.
Completed with a protective cap. Cable length - 1.0 m.
| Characteristics of the YU-USB2-MP-MP-1M-001 connector | |
| Connector type | Cable |
| Interface | USB, USB 2.0, USB 2.0 Typ A female, USB 2.0 Typ A male |
| Connector view | mother-father |
| Color | black |
| Cable | 0.15mm2~0.2mm2/26-24AWG |
| Number of contacts | 4 |
| Tok | 1.5 A |
| Contact resistance | < 30 mΩ |
| Withstand voltage | 500 B |
| Length | 0.3 m |
| Minimum operating temperature | -40°C |
| Maximum operating temperature | +80°C |
| Connection resource | 500 |
| Degree of protection according to EN60529 2000 | IP67 |
 |
| |
 |
| General dimensions of the YU-USB2-MP-MP-1M-001 connector |
 |
 |
