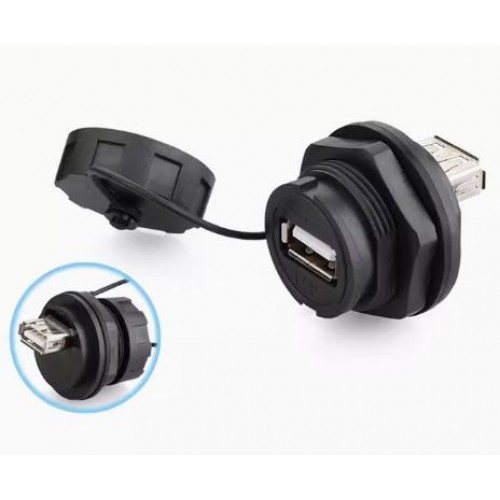

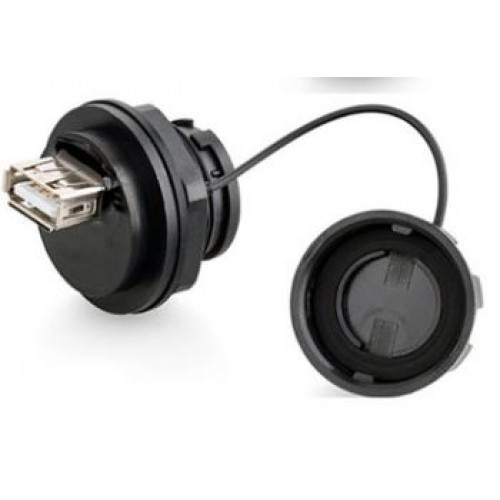

USB 2.0 pass-through , from the outside and from the side of the body it has a “female” entrance, type “A” with a bayonet lock. Comes with a protective cap.
On the housing side, the connector is filled with a compound, which makes it impossible for moisture to enter , dust and dirt into the connector.
Mate to the connector YU-USB2-JSX-01-001 may be - YU-USB2-MP-MP-1M-001
Developed specifically for industrial purposes, the YU-USBprovides reliable protection for USB connections. These connectors have excellent insulation characteristics and support both USB2.0.
With built-in external operations, they allow easy connection and hot-swapping , and do not require access inside the housing to connect to the electrical connection block. This makes them the ideal choice for convenient and reliable connections, fully satisfying your connection block needs.
These connectors are designed for a variety of industrial applications and meet global standards on environmental protection for industrial equipment.
| Connector characteristics YU-USB2-JSX-01-001 | |
| Connector type | Panel |
| Interface | USB, USB 2.0, USB 2.0 Typ A female, USB 2.0 Typ A male |
| Connector view | mama-mama |
| Color | black |
| Maximum current, A | 1.5 |
| Contact resistance | < 30 mΩ |
| Minimum operating temperature | -40°C |
| Maximum operating temperature | +80°C |
| Connection resource | 500 |
| Degree of protection according to EN60529 2000 | IP67 |
| Certified to standards | UL1977, CE EN60309-1, TÜV |
 |
| |
 |
| |
 |
| |
