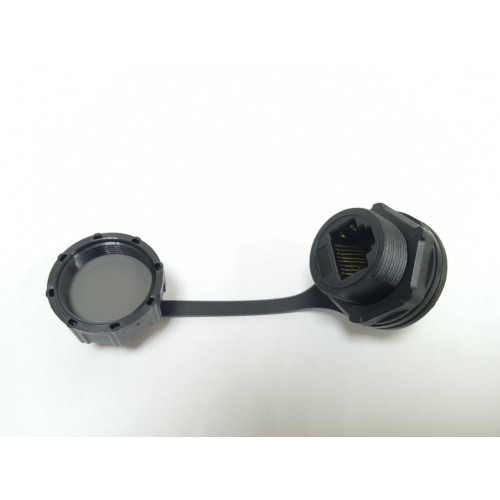

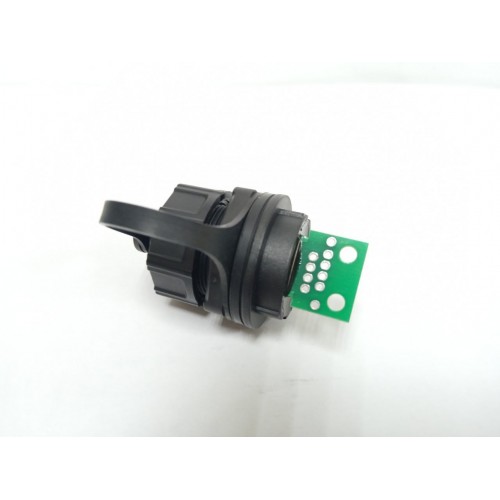

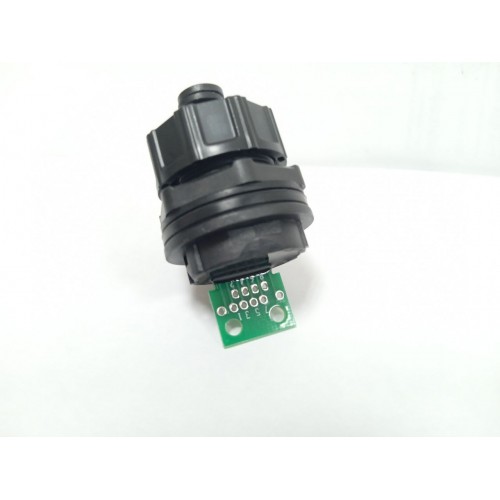

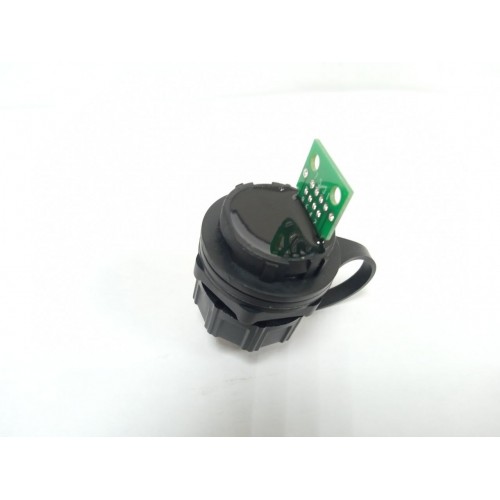

YT series sealed panel socket with nut fastening - YT-RJ45-JSX-29-001 solder connector. This series offers solutions for transmitting signals in difficult conditions on the Internet - for transmitting high-quality audio and video signals. These connectors work great with DMX protocols for lighting control. Stage equipment can also be controlled using these connectors.
Match to socket YT-RJ45-JSX-29-001 - there will be a cable plug YT-RJ45-CPE-29-001.
Analog - panel socket YT-RJ45-JSX-29-004 (RJ45 feed-through socket)
YT Series Sealed RJ45 Connector Features | |
| Connector type | Panel socket |
| Cable diameter | Φ 5.5 - 7.0 mm |
| Contact resistance | 40 mOhm |
| Cable characteristics | 0.15-0.2 mm2 / 26-24 AWG |
| Number of connections | > 1700 |
| Operating temperature range | -40°С ... +80°С |
| Clamping force | 42-53 Nm |
| Aggressive salty environment | PH 6.5-7.2; NaCl 5%, 48H |
| Connection of plug and socket | Threaded |
| Protection class | IP65 / IP67 |
| Flammability class | UL94-V0 |
| Certificates | CE, CCC, RoHS, ISO9001 |

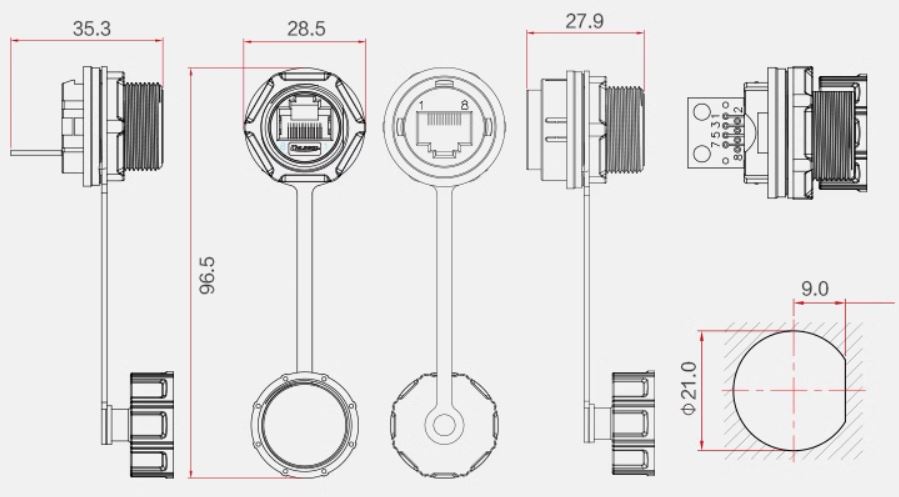

| Dimensions of the sealed connector RJ45 | |
| Cable plug | Panel socket |
 |  |
