YT Series Sealed Solder Panel Receptacle - connectors of this series offer solutions for signal transmission in difficult Internet conditions - for transmitting high-quality audio and video signals. These connectors work great with DMX protocols for lighting control. Stage equipment can also be controlled using these connectors.

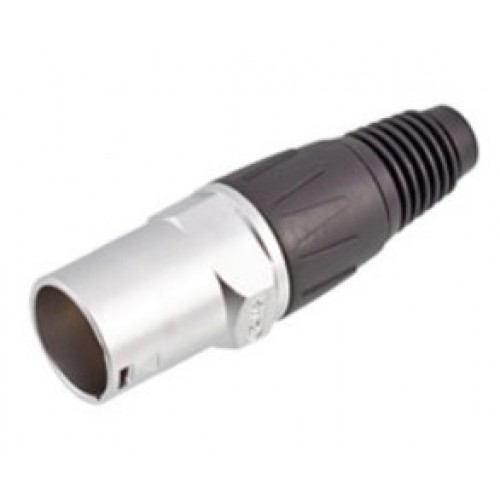

The counter part to the panel socket YT-RJ45-JSX-25-001 will be a cable plug EL-RJ-WB
According to EIA568B and various ISO/IEC11801 certifications, level D or CAT 3e, CAT5e compatible. Data transfer speed reaches 10 Gbps.
Cable sheath with durable housing and unique double clamp.
Characteristics of RJ45 series sealed connector YT | |
| Connector type | Panel socket |
| Cable diameter | Φ 5.5 - 7.0 mm |
| Cable characteristics | 0.15-0.2 mm2 / 26-24 AWG |
| Number of connections | > 1700 |
| Operating temperature range | -40°С ... +80°С |
| Protection class | IP65 / IP67 |
| Flammability class | UL94-V0 |
| Certificates | CE, CCC, RoHS, ISO9001 |
| Dimensions of the sealed RJ45 connector | |
| Cable plug | Block socket |
 |  |
| Installation dimensions of panel socket | |
 | |
