Sealed socket YT series - connectors of this series offer solutions for signal transmission in difficult Internet conditions, - for transmitting high-quality audio and video signals signals. These connectors work great with DMX protocols for lighting control. Stage equipment can also be controlled using these connectors.
The connecting part to the panel socket YT-RJ45-JSX-01-001 will be a cable plug - YT-RJ45-CPE-01-001
Characteristics of YT Series Sealed RJ45 Connector |
|
| Connector type | Panel socket |
| Cable diameter | Φ 5.5 - 7.0 mm |
| Cable characteristics | 0.15-0.2 mm2 / 26-24 AWG |
| Number of connections | > 1700 |
| Operating temperature range | -40°С ... +80°С |
| Protection class | IP65 / IP67 |
| Flammability class | UL94-V0 |
| Certificates | CE, CCC, RoHS, ISO9001 |

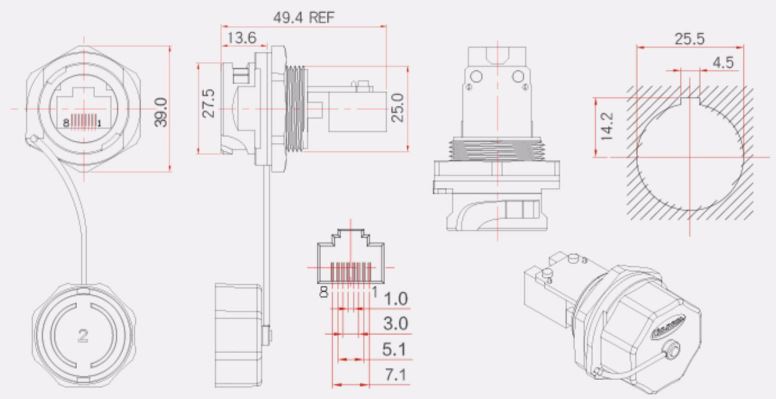

| Dimensions of the sealed RJ45 connector | |
| Cable plug - mating part | Block socket |
 |
 |
| Installation dimensions of panel socket | |
 |
|
| 3D connector view RJ45 |
