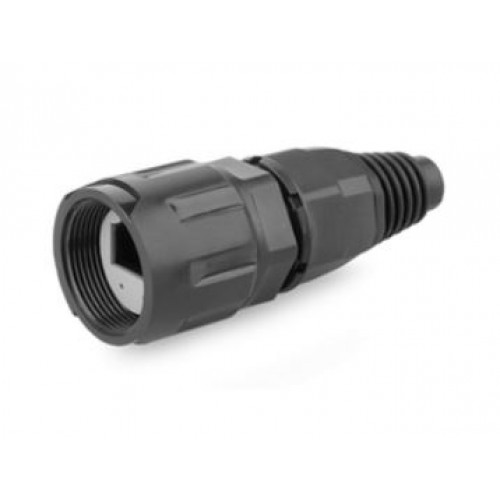

Sealed connector YT-RJ45-CPE-29-001 - cable plug made of durable plastic has an internal thread for connection to a feed-through socket YT-RJ45-JSX-29-004 or with solder socket YT-RJ45-JSX-29-001

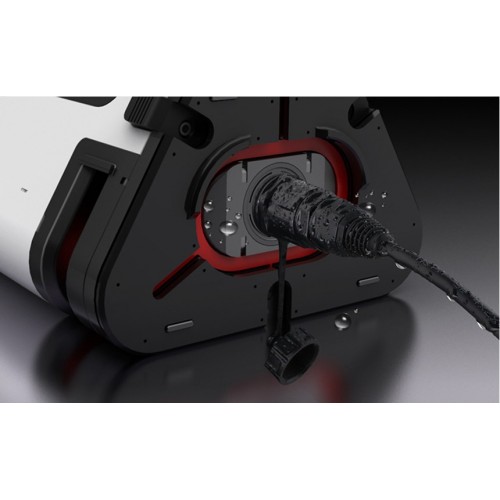

The connector is protected from dust, dirt and water - has a degree of protection IP67.
Characteristics of YT Series Sealed RJ45 Connector | |
| Connector type | Cable plug |
| Diameter cable | Φ 5.5 - 7.0 mm |
| Contact resistance | 40 mOhm |
| Cable characteristics | 0.15-0.2 mm2 / 26-24 AWG |
| Number of connections | > 1700 |
| Operating temperature range | -40°С ... +80°С |
| Clamping force | 42-53 Nm |
| Aggressive salty environment | PH 6.5-7.2; NaCl 5%, 48H |
| Connection of plug and socket | Threaded |
| Protection class | IP65 / IP67 |
| Flammability class | UL94-V0 |
| Certificates | CE, CCC, RoHS, ISO9001 |

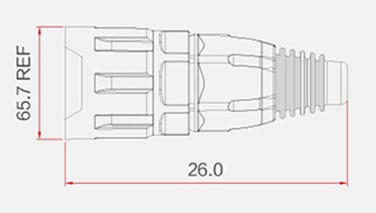

| Dimensions of the sealed connector RJ45 | |
| Cable plug | Panel socket |
 |   |
| Installation dimensions of panel socket | |
 | |
