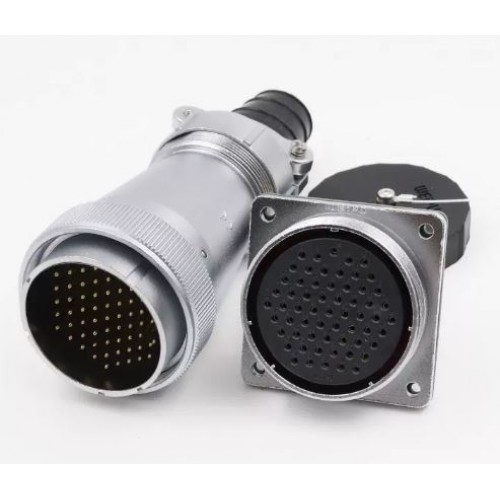

Connector WF55K61Z1 - sixty-one pin sealed panel socket with direct output under the cable. It has a nominal mounting diameter of 55 mm, connects a circuit with current up to 10A and voltage up to 500V, wires are secured by soldering.

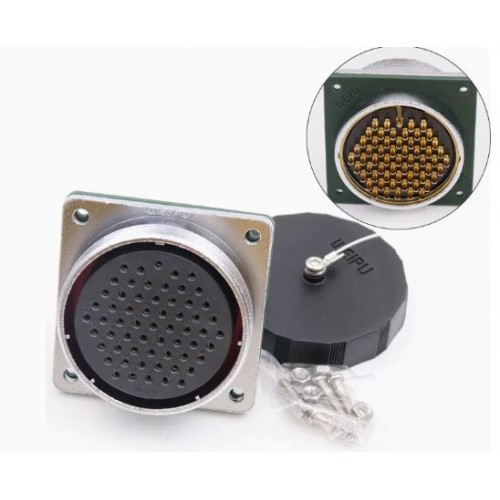

The housing of this connector is sealed and dustproof, made of zinc alloy. Fastening to the panel is carried out with 4 screws. Can be equipped with a protective cover. Has protection - IP67
Contact diameter - 1.5 mm. The connected wire may have a cross-section with a diameter ≤ 2 mm2 (AWG ≤ 14).
Weipu WF55 series connectors can be used both indoors and outdoors.
You can select the response part in section HERE
| Dimensions and diagram of the WF series connectors of the Z panel socket | ||
 |  |  |
| Number of contacts | 61 | |
| ⌀d1 | 54.8 | |
| D | M59x1.5 | |
| I | 14 | |
| L | 34 | |
| b | 52 | |
| B | 64 | |
| ⌀d2 | 55.5 | |
| ⌀ | 4.5 | |
Characteristics of Weipu WF55 series connectors
| Explanation of Weipu-WF connector markings | ||||||||||
| WF | 55 | K | 61 | Z | 1 | |||||
| WF | -connector series Weipu |
| 55 | - connector size (16; 20; 28; 40; 55) |
| K | - socket (J - plug) |
| 61 | - number of contacts (4, 7, 40, 53, 61) |
| Z | - panel rosette, square flange |
| 1 | - attaching wires to contacts by soldering |
