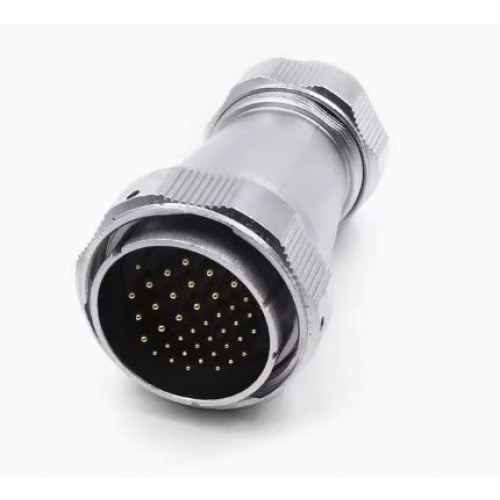

Connector WF55J40TE1 - forty-pin sealed cable plug with direct cable outlet. It has a mounting diameter of 55 mm, connects a circuit with current up to 25A (15 pins) and 10A (25 contacts) and voltage up to 500V, the wires are fastened by soldering.
The housing of this connector is sealed and dustproof, made of zinc alloy with chrome plating. Without lid. Has protection - IP67
Contact diameter - 2.5 mm (15 pins) and 1.5 mm (25 contacts). The connected wire can have a cross-section with a diameter ≤ 4 mm2 (AWG ≤ 11) and ≤ 2 mm2 (AWG ≤ 14).
Weipu WF55 series connectors can be used both indoors and outdoors.
| Dimensions and connector diagram of WF TE series cable connector with metal clamp nut | ||
 | ||
| Number of contacts | 40 | |
| ⌀D | 64.5 | |
| L | 131.6 | |
| ⌀d | 24.5-26 | |
Characteristics of Weipu WF series connectors
| Explanation of Weipu-WF connector markings | ||||||||||
| WF | 55 | J | 40 | TE | 2 | |||||
| WF | - Weipu connector series |
| 55 | - connector size (16; 20; 24; 28; 32; 48; 55) |
| J | - plug ( K - socket) |
| 40 | - number of contacts (4, 7, 40, 53, 61) |
| TE | - cable plug with mechanical clamp |
| 1 | - attaching wires to contacts using soldering |
