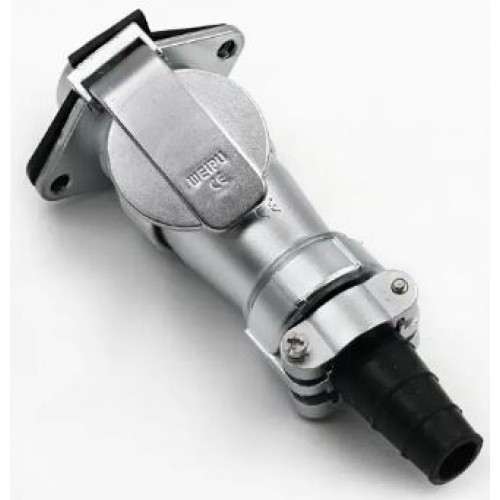

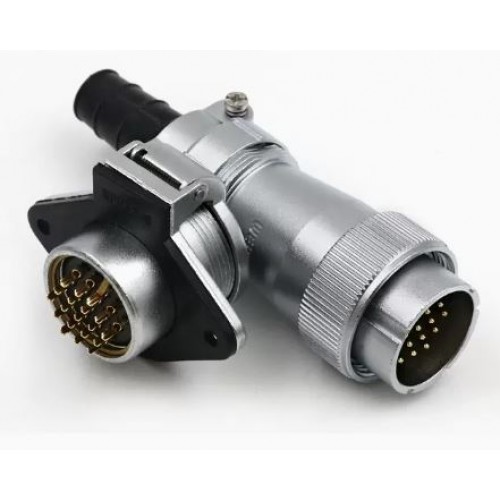

Connector WF32K19ZG1 - nineteen-pin sealed panel socket with direct cable outlet. It has a mounting diameter of 32 mm, connects a circuit with current up to 10А voltage up to 500V, wires are fastened by soldering.

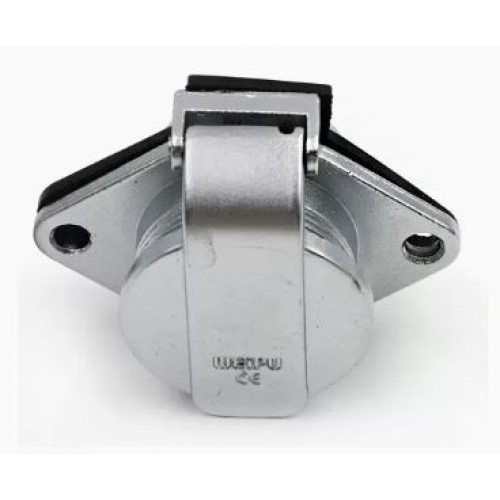

The body of this connector is Sealed and dustproof, made of zinc alloy. Fastening to the panel is carried out with 4 screws. With metal lid. Has protection - IP67
Contact diameter - 1.5 mm. The connected wire may have a cross-section with a diameter ≤ 2 mm2 (AWG ≤ 14).
Weipu WF32 series connectors can be used both indoors and outdoors.
You can select the response in the section HERE
| Dimensions and diagram of connectors of the WF series of the ZG panel socket | ||
 | ||
| Number of contacts | 19 | |
| ⌀d1 | 31.8 | |
| I | 15.4 | |
| L | 34 | |
| b | 55 | |
| B | 67 | |
| h | 52.5 | |
| ⌀d | 32.5 | |
| ⌀ | 5.5 | |
Characteristics of Weipu WF series connectors
| Explanation of Weipu-WF connector markings | ||||||||||
| WF | 32 | K | 19 | ZG | 1 | |||||
| WF | -connector series Weipu |
| 32 | - connector size (16; 20; 28; 40; 55) |
| K | - socket (J - plug) |
| 19 | - number of contacts (4, 6, 8, 8B, 10, 10B, 11, 12, 13, 19) |
| ZG | - panel socket, square flange |
| 1 | - attaching wires to contacts when help rations |
