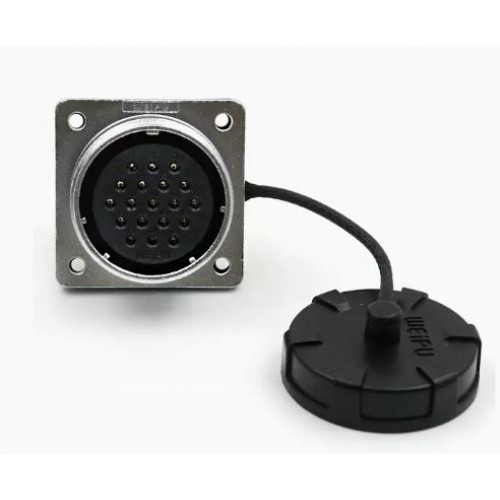

Connector WF32K13Z1 - nineteen-pin sealed panel socket with direct cable outlet. It has a mounting diameter of 32 mm, connects a circuit with current up to 10A and voltage up to 500V, The wires are fastened by soldering.
The housing of this connector is sealed and dustproof, made of zinc alloy. Fastening to the panel is carried out with 4 screws. Can be equipped with a protective cover. Has protection - IP67
Contact diameter - 1.5 mm. The connected wire may have a cross-section with a diameter ≤ 2 mm2 (AWG ≤ 14).
Weipu WF32 series connectors can be used both indoors and outdoors.
You can select the response part in the sectionHERE
| Dimensions and diagram of the WF series connectors of the Z panel socket> | ||
 |  |  |
| Number of contacts | 19 | |
| ⌀d1 | 31.8 | |
| D | M35x1.5 | |
| I | 14.4 | |
| L | 34 | |
| b | 32 | |
| B | 42 | |
| ⌀d2 | 32.5 | |
| ⌀ | 3.5 | |
| Current, A | 10 | |
| Voltage, V | 500 | |
Characteristics of Weipu WF series connectors
| Explanation of Weipu-WF connector markings | ||||||||||
| WF | 32 | K | 19 | Z | 1 | |||||
| WF | -connector series Weipu |
| 32 | - connector size (16; 20; 28; 40; 55) |
| K | - socket (J - plug) |
| 19 | - number of contacts (4, 6, 8, 8B, 10, 10B, 11, 12, 13, 19) |
| Z | - panel socket, square flange |
| 1 | - attaching wires to contacts when using soldering (2 - fastening wires screws; 3 - crimping) |
