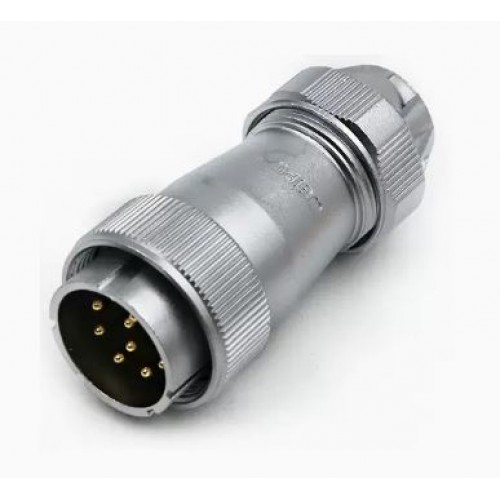

Connector WF32J8TE1 - eight-pin sealed cable plug with direct cable outlet. It has a mounting diameter of 32 mm, connects a circuit with a current of up to 50A (3 pins) and 10A (5 contacts) voltage up to500V, the wires are fastened by soldering.
The housing of this connector is sealed and dustproof, made of zinc alloy with chrome plating. Without lid. Has protection - IP67
Pin diameter - 3.5 mm (5 pins) and 1.5 mm (3 pins). The connected wire may have a cross-section with a diameter of ≤ 7 mm2 (AWG ≤ 10) and 2 mm2 (AWG ≤ 14).
Weipu WF32 series connectors can be used both indoors and outdoors.
| Dimensions and diagram of connectors of the WF TE series cable connector with a metal clamp nut | ||
 | ||
| Number of contacts | 8 | |
| ⌀D | 39.5 | |
| L | 88 | |
| ⌀d | 15.5-17 | |
Characteristics of Weipu WF series connectors
| Explanation of Weipu-WF connector markings | ||||||||||
| WF | 32 | J | 8 | TE | 1 | |||||
| WF | - Weipu connector series |
| 32 | - connector size (16; 20; 24; 28; 32; 48; 55) |
| J | - plug ( K - socket) |
| 8 | - number of contacts (4, 6, 8, 8B, 10, 10B, 11, 12, 13, 19) |
| TE | - cable plug with mechanical clamp |
| 1 | - attaching wires to contacts using soldering |
