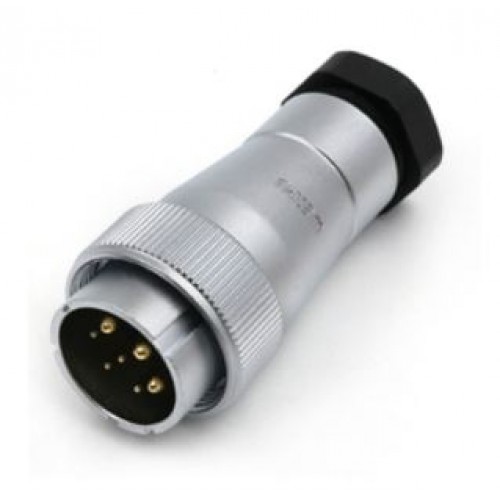

Connector WF32J8TA1 - eight-pin sealed cable plug with direct cable outlet. It has a mounting diameter of 32 mm, connects a circuit with a current of up to 10A (5 contacts) and 50A (3 contacts) and a voltage of up to 500V, the wires are fastened by soldering. font>
The housing of this connector is sealed and dustproof, made of zinc alloy with chrome plating. Without lid. Has protection - IP65
The diameter of the contacts is 3.5 mm (3 contacts) and 1.5 mm (5 contacts). The connected wire may have a cross-section with a diameter of ≤ 7 mm2 (AWG ≤ 10) ≤ 2 mm2 (AWG ≤ 14).
The use of Weipu WF32 series connectors can carried out both indoors and outdoors.
| Dimensions and connector diagram WF TA series cable connector with plastic clamping nut | ||
 | ||
| Number of contacts | 8 (3 contacts 50A + 5 contacts 10A) | |
| ⌀D | 39.5 | |
| L | 89.5 | |
| ⌀d | 8.5-19.5 | |
Characteristics of Weipu WF series connectors
| Explanation of Weipu-WF connector markings | ||||||||||
| WF | 32 | J | 8 | TA | 1 | |||||
| WF | - Weipu connector series |
| 32 | - connector size (16; 20; 24; 28; 32; 48; 55) |
| J | - plug ( K - socket) |
| 8 | - number of contacts (4, 6, 8, 8B, 10, 10B, 11, 12, 13, 19) |
| TA | - cable plug with plastic clamp nut |
| 1 | - attaching wires to contacts using soldering |
