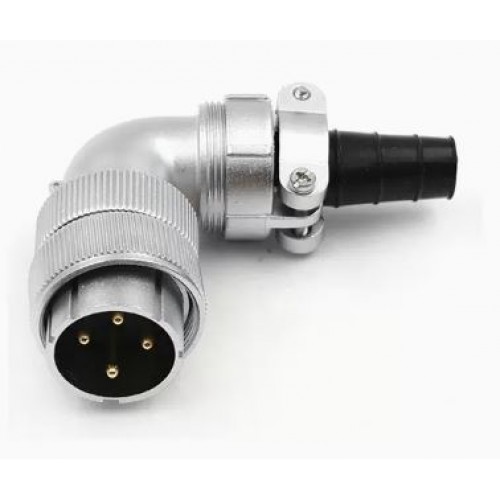

Connector WF32J4TV1 - four-pin sealed cable plug with angled cable outlet. It has a mounting diameter of 32 mm, connects a circuit with a current of up to 50A and a voltage of up to 500V, the wires are fastened by soldering or crimping.
The body of this connector is sealed and dustproof, made of zinc alloy with chrome plating. Without lid. Has protection - IP67
The diameter of the contacts is 3.5 mm. The connected wire may have a cross-section with a diameter of ≤ 7 mm2 (AWG ≤ 10).
Weipu WF32 series connectors can be used both indoors and outdoors.
| Dimensions and diagram of series connectors WF TV cable corner connector with mechanical clamp | ||
 | ||
| Number of contacts | 4 | |
| H | 96 | |
| L | 82.5 | |
| ⌀d | 13-15.6 | |
Characteristics of Weipu WF series connectors
| Explanation of Weipu-WF connector markings | ||||||||||
| WF | 32 | J | 4 | TV | 1 | |||||
| WF | - Weipu connector series |
| 32 | - connector size (16; 20; 24; 28; 32; 48; 55) |
| J | - plug ( K - socket) |
| 4 | - number of contacts (4, 6, 8, 8B, 10, 10B, 11, 12, 13, 19) |
| TV | - cable plug with metal clamp nut |
| 1 | - attaching wires to contacts using soldering (3 - crimping) |
