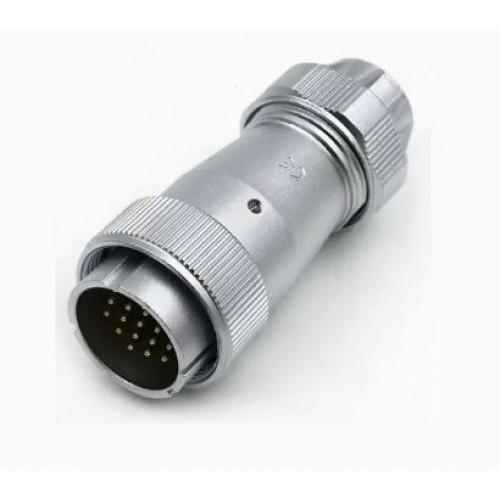

Connector WF32J19TE1 - nineteen pin sealed straight lead cable plug under the cable. It has a mounting diameter of 32 mm, connects a circuit with a current of up to 10A voltage up to 500V, the wires are attached by soldering.
The housing of this connector is sealed and dustproof, made of zinc alloy with chrome plating. Without lid. Has protection - IP67
Pin diameter - 1.5 mm. The connected wire can have a cross-section with a diameter ≤ 2 mm2 (AWG ≤ 14).
Weipu WF32 series connectors can be used both indoors and outdoors.
| Dimensions and diagram of connectors of the WF TE series cable connector with a metal clamp nut | ||
 | ||
| Number of contacts | 19 | |
| ⌀D | 39.5 | |
| L | 88 | |
| ⌀d | 15.5-17 | |
Characteristics of Weipu WF series connectors
| Explanation of Weipu-WF connector markings | ||||||||||
| WF | 32 | J | 19 | TE | 1 | |||||
| WF | - Weipu connector series |
| 32 | - connector size (16; 20; 24; 28; 32; 48; 55) |
| J | - plug ( K - socket) |
| 19 | - number of contacts (4, 6, 8, 8B, 10, 10B, 11, 12, 13, 19) |
| TE | - cable plug with mechanical clamp |
| 1 | - attaching wires to contacts using soldering |
