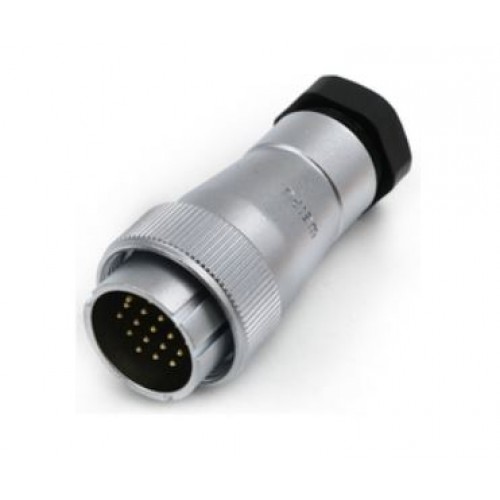

Connector WF32J19TA1 - nineteen pin sealed straight lead cable plug under the cable. It has a mounting diameter of 32 mm, connects a circuit with a current of up to 10A and tension up to 500V, wires are fastened by soldering.
The housing of this connector is sealed and dustproof, made of zinc chrome-plated alloy. Without lid. Has protection - IP65
Pin diameter - 1.5 mm. The connected wire may have a cross-section with a diameter of ≤ 2 mm2 (AWG ≤ 14).
Weipu WF32 series connectors can be used both indoors and outdoors.
| Dimensions and connector diagram of WF TA series cable connector with plastic clamp nut | ||
 | ||
| Number of contacts | 19 | |
| ⌀D | 39.5 | |
| L | 89.5 | |
| ⌀d | 8.5-19.5 | |
Characteristics of Weipu WF series connectors
| Explanation of Weipu-WF connector markings | ||||||||||
| WF | 32 | J | 19 | TA | 1 | |||||
| WF | - Weipu connector series |
| 32 | - connector size (16; 20; 24; 28; 32; 48; 55) |
| J | - plug ( K - socket) |
| 19 | - number of contacts (4, 6, 8, 8B, 10, 10B, 11, 12, 13, 19) |
| TA | - cable plug with plastic clamp nut |
| 1 | - attaching wires to contacts using soldering |
