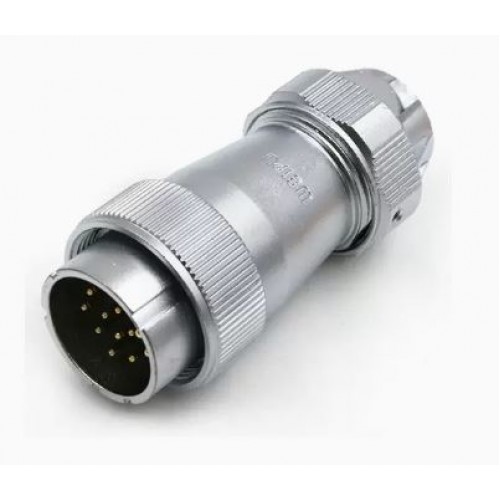

WF32J11TE1 connector - eleven-pin sealed cable plug with direct cable outlet. It has a mounting diameter of 32 mm, connects a circuit with current up to 25A
The housing of this connector is sealed and dustproof, made of zinc alloy with chrome plating. Without lid. Has protection - IP67
Pin diameter - 2.5 mm. The connected wire may have a cross-section with a diameter of ≤ 4 mm2 (AWG ≤ 11).
Weipu WF32 series connectors can be used both indoors and outdoors.
| Dimensions and connector diagram of WF TE series cable connector with metal clamp nut | ||
 | ||
| Number of contacts | 11 | |
| ⌀D | 39.5 | |
| L | 88 | |
| ⌀d | 15.5-17 | |
Characteristics of Weipu WF series connectors
| Explanation of Weipu-WF connector markings | ||||||||||
| WF | 32 | J | 11 | TE | 1 | |||||
| WF | - Weipu connector series |
| 32 | - connector size (16; 20; 24; 28; 32; 48; 55) |
| J | - plug ( K - socket) |
| 11 | - number of contacts (4, 6, 8, 8B, 10, 10B, 11, 12, 13, 19) |
| TE | - cable plug with mechanical clamp |
| 1 | - attaching wires to contacts using soldering |
