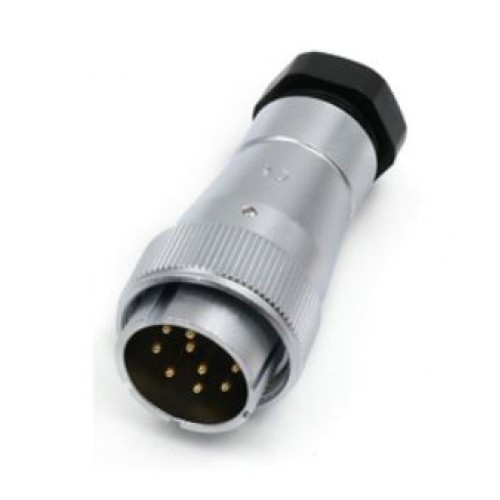

Connector WF32J10BTA1 - ten-pin sealed cable plug with direct cable outlet. It has a mounting diameter of 32 mm, connects a circuit with a current of up to 25A and a voltage of up to 500V, the wires are fastened by soldering.
The body of this connector is sealed and dustproof, made of zinc alloy with chrome plating. Without lid. Has protection - IP65
The diameter of the contacts is 2.5 mm. The connected wire can have a cross-section with a diameter of ≤ 4 mm2 (AWG ≤ 11).
Weipu WF32 series connectors can be used both indoors and outdoors.
| Dimensions and connector diagram of WF TA series cable connector with plastic clamp nut | ||
 | ||
| Number of contacts | 10B | |
| ⌀D | 39.5 | |
| L | 89.5 | |
| ⌀d | 8.5-19.5 | |
Characteristics of Weipu WF series connectors
| Explanation of Weipu-WF connector markings | ||||||||||
| WF | 32 | J | 10B | TA | 1 | |||||
| WF | - Weipu connector series |
| 32 | - connector size (16; 20; 24; 28; 32; 48; 55) |
| J | - plug ( K - socket) |
| 10B | - number of contacts (4, 6, 8, 8B, 10, 10B, 11, 12, 13, 19) |
| TA | - cable plug with plastic clamp nut |
| 1 | - attaching wires to contacts using soldering |
