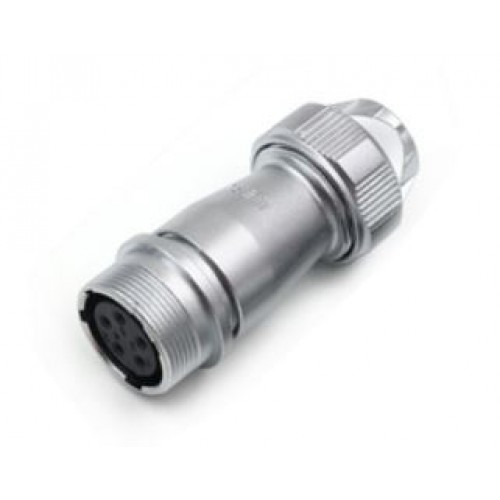

Connector WF20K7ZEB1 - seven-pin sealed cable (can be used as an inter-cable) socket with a direct cable outlet and a metal clamp. It has a mounting diameter of 20 mm, connects a circuit with a current of up to 10A and a voltage of up to 500V, the wires are fastened by soldering.
The housing of this connector is sealed and Dustproof, made of zinc alloy with chrome plating. Without lid. Has protection - IP67
The diameter of the contacts is 1.5 mm. The connected wire may have a cross-section with a diameter of ≤ 2 mm2 (AWG ≤ 14).
Weipu WF20 series connectors can be used both indoors and outdoors.
| Dimensions and diagram of WF series connectorsZEB cable connector with metal clamp | ||
 | ||
| Number of contacts | 7 | |
| D | M22x1 | |
| L | 63 | |
| ⌀d | 9-10.5 | |
Characteristics of Weipu WF series connectors
| Explanation of Weipu-WF connector markings | ||||||||||
| WF | 20 | K | 7 | ZEB | 1 | |||||
| WF | - Weipu connector series |
| 20 | - connector size (16; 20; 24; 28; 32; 48; 55) |
| K | - socket ( J - plug) |
| 7 | - number of contacts (2, 3, 4, 5, 6, 6B, 7, 8, 9, 12, 15) |
| ZEB | - cable socket with metal clamp |
| 1 | - fastening wires to contacts using soldering (2 - fastening wires with screws; 3 - crimping) |
