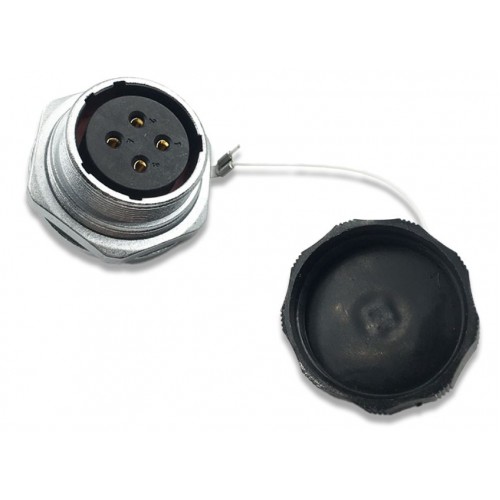

Connector WF20K4ZMQ1 - four-pin sealed panel socket with direct cable outlet. It has a mounting diameter of 20 mm, connects a circuit with a current of up to 25A and a voltage of up to 500V, the wires are fastened by soldering.
The housing of this connector is sealed and Dustproof, made of zinc alloy with chrome plating. Has protection - IP67
The diameter of the contacts is 2.5 mm. The connected wire can have a cross-section with a diameter of ≤ 4 mm2 (AWG ≤ 11).
Weipu WF20 series connectors can be used both indoors and outdoors.
| Dimensions and diagram of connectors of the WF ZMQ series panel straight connector with fastening to the block with a nut (front - to the block ) | ||
 | ||
| Quantity contacts | 4 | |
| D | M22x1 | |
| D2 | M26x1 | |
| L | 17 | |
| L2 | 23 | |
| C | 5 | |
| B | 30.8 | |
| ⌀d | 26 | |
| h | 24.6 | |
Characteristics of Weipu WF series connectors
| Explanation of Weipu-WF connector markings | ||||||||||
| WF | 20 | K | 4 | ZMQ | 1 | |||||
| WF | - Weipu connector series |
| 20 | - connector size (16; 20; 24; 28; 32; 48; 55) |
| K | - socket ( J - plug) |
| 4 | - number of contacts (2, 3, 4, 5, 6, 6B, 7, 8, 9, 12, 15) |
| ZMQ | - panel straight socket with fastening to the block with a nut on the front of the block |
| 1 | - fastening the wires to the contacts using soldering (2 - fastening the wires with screws; 3 - crimping) |
