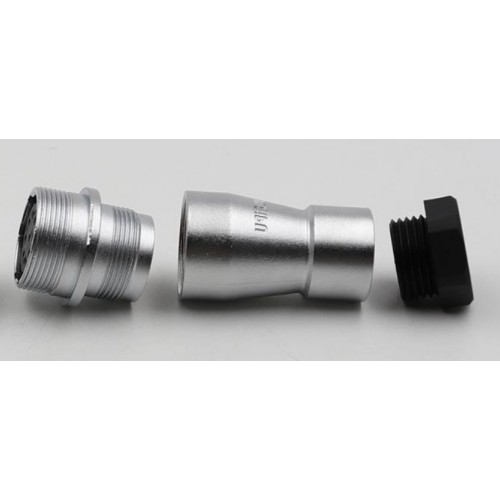

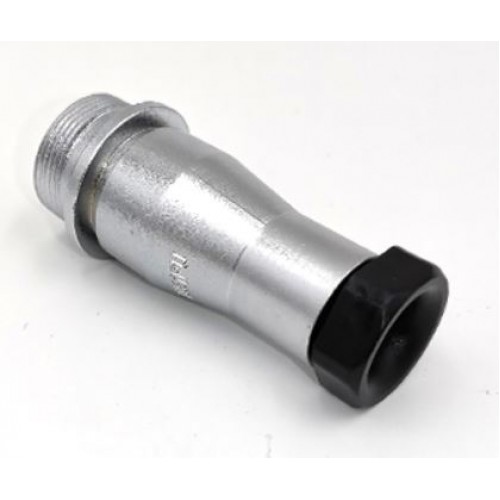

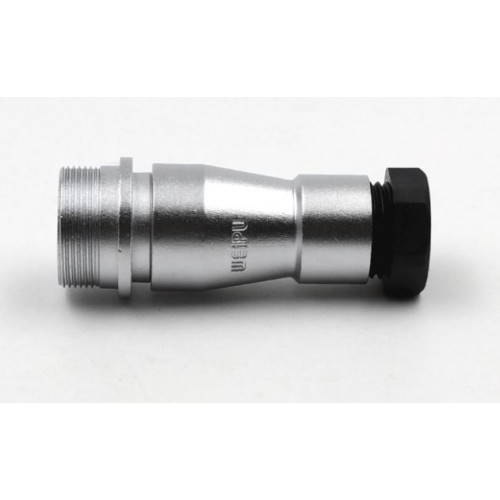

Connector WF20K2ZAB1 - two-pin sealed cable (can be used as an inter-cable) socket with direct cable outlet. It has a mounting diameter of 20 mm, connects a circuit with a current of up to 25A and a voltage of up to 500V, the wires are fastened by soldering.
The housing of this connector is sealed and Dustproof, made of zinc alloy with chrome plating. Without lid. Has protection - IP65
The diameter of the contacts is 2.5 mm. The connected wire can have a cross-section with a diameter of ≤ 4 mm2 (AWG ≤ 11).
Weipu WF20 series connectors can be used both indoors and outdoors.

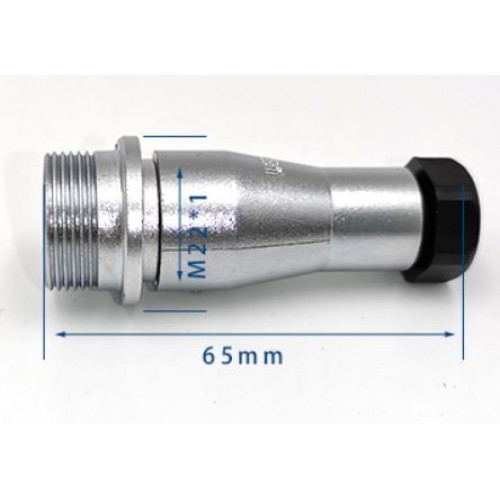

| Dimensions and diagram of WF series connectorsZAB cable connector with plastic clamp | ||
 | ||
| Number of contacts | 2 | |
| D | M22x1 | |
| L | 65 | |
| ⌀d | 5-12 | |
Characteristics of Weipu WF series connectors
| Explanation of Weipu-WF connector markings | ||||||||||
| WF | 20 | K | 2 | ZAB | 1 | |||||
| WF | - Weipu connector series |
| 20 | - connector size (16; 20; 24; 28; 32; 48; 55) |
| K | - socket ( J - plug) |
| 2 | - number of contacts (2, 3, 4, 5, 6, 6B, 7, 8, 9, 12, 15) |
| ZAB | - cable socket with plastic clip |
| 1 | - fastening wires to contacts using soldering (2 - fastening wires with screws; 3 - crimping) |
