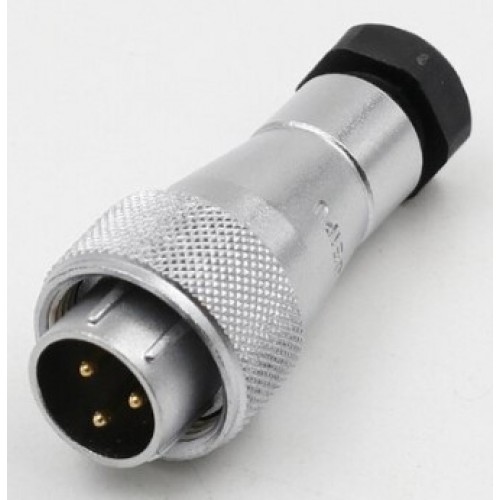

Connector WF20J3TA1 - three-pin sealed cable plug with direct cable outlet. It has a mounting diameter of 20 mm, connects a circuit with a current of up to 25A and a voltage of up to 500V, the wires are fastened by soldering.
The housing of this connector is sealed and Dustproof, made of zinc alloy with chrome plating. Without lid. Has protection - IP65
The diameter of the contacts is 2.5 mm. The connected wire can have a cross-section with a diameter of ≤ 4 mm2 (AWG ≤ 11).
Weipu WF20 series connectors can be used both indoors and outdoors.
| Dimensions and diagram of connectors of the WF TA series cable connector with a plastic clamp nut | ||
 | ||
| Number of contacts | 2, 3, 4, 5, 6, 6B, 7, 8, 9, 12, 15 | |
| ⌀D | 26 | |
| L | 64 | |
| ⌀d | 5-12 | |
Characteristics of Weipu WF series connectors
| Explanation of Weipu-WF connector markings | ||||||||||
| WF | 20 | J | 3 | TA | 1 | |||||
| WF | - Weipu connector series |
| 20 | - connector size (16; 20; 24; 28; 32; 48; 55) |
| J | - plug ( K - socket) |
| 3 | - number of contacts (2, 3, 4, 5, 6, 6B, 7, 8, 9, 12, 15) |
| TA | - cable plug with plastic clamp nut |
| 1 | - fastening wires to contacts using soldering (2 - fastening wires with screws; 3 - crimping) |
