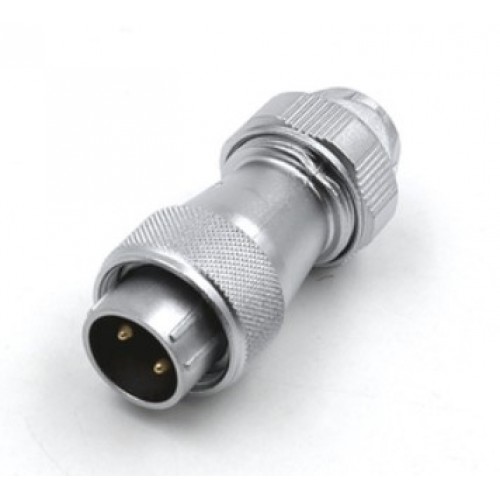

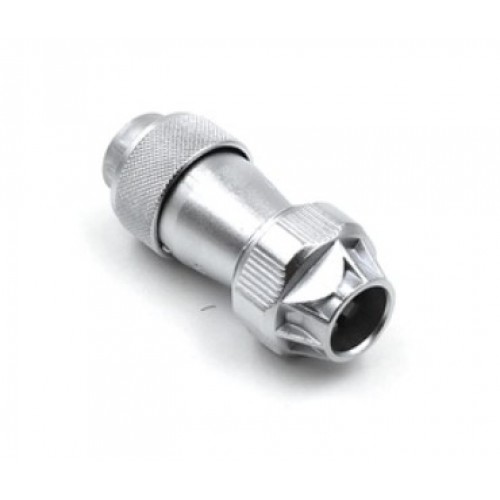

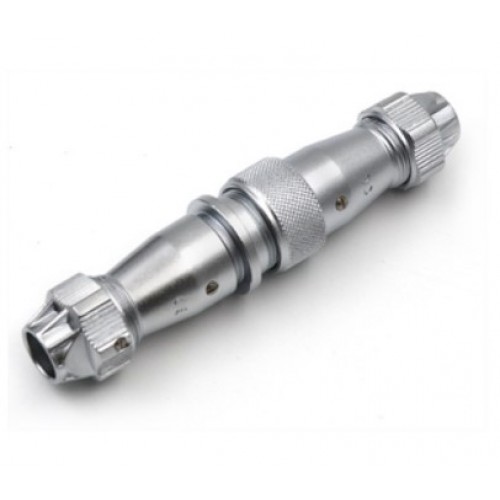

Connector WF20J2TE1 - two-pin sealed cable plug with direct cable outlet. The connection with the mating part is threaded. It has a mounting diameter of 20 mm, connects a circuit with a current of up to 25A and a voltage of up to 500V, the wires are fastened by soldering.

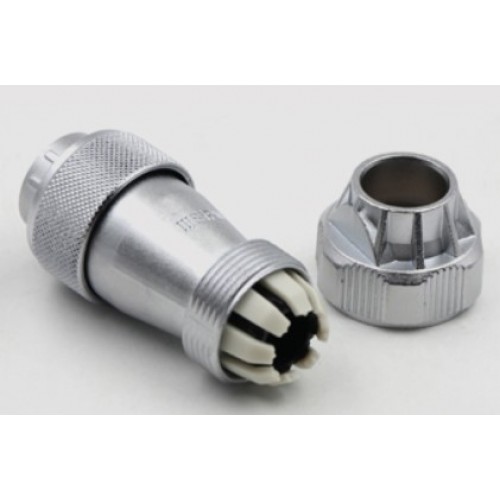

The housing of this connector is sealed and Dustproof, made of zinc alloy with chrome plating. Without lid. Has protection - IP67
Contact diameter - 2.5 mm. The connected wire may have a cross-section with a diameter ≤ 4 mm2 (AWG ≤ 11).

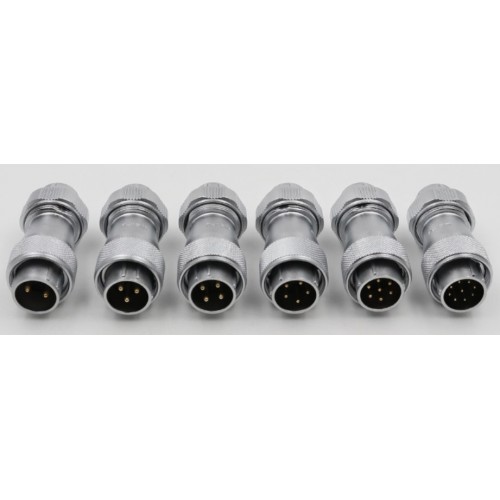

Weipu WF20 series connectors can be used both indoors and outdoors.
The cost depends on the form of payment, quantity.
| Dimensions and connector diagram of WF series cable plug with TI metal clamp nut | ||
 | ||
| Number of contacts | 2 | |
| ⌀D | 26 | |
| L | 62.5 | |
| ⌀d | 9-10.5 | |
Characteristics of Weipu WF series connectors
| Explanation of Weipu-WF connector markings | ||||||||||
| WF | 20 | J | 2 | TE | 1 | |||||
| WF | - Weipu connector series |
| 20 | - connector size (16; 20; 24; 28; 32; 48; 55) |
| J | - plug ( K - socket) |
| 2 | - number of contacts (2, 3, 4, 5, 6, 6B, 7, 8, 9, 12, 15) |
| TE | - cable plug with mechanical clamp |
| 1 | - fastening the wires to the contacts using soldering (2 - fastening the wires with screws; 3 - crimping) |
