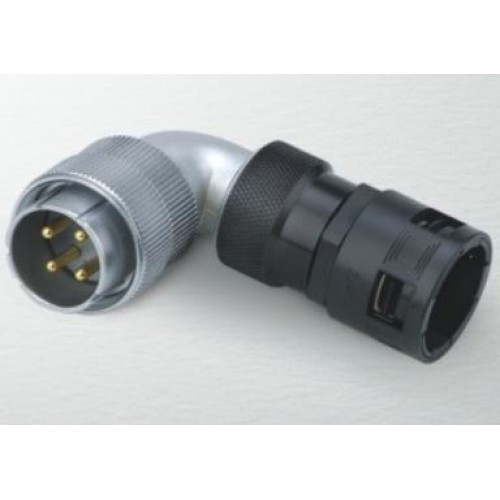

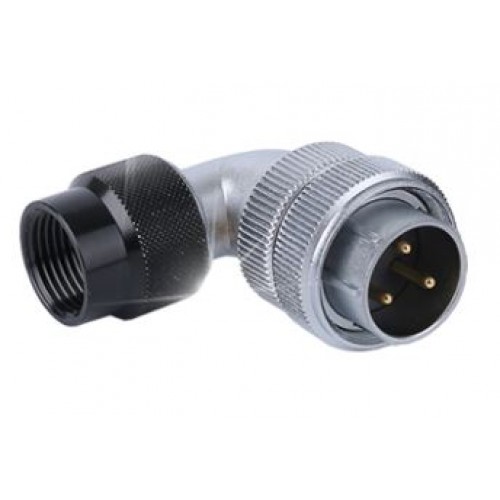

Connector WF20J15TW1 - fifteen-pin sealed cable plug with angled cable outlet. It has a mounting diameter of 20 mm, connects a circuit with a current of up to 5A and a voltage of up to 400V, the wires are fastened by soldering.
The housing of this connector is sealed and Dustproof, made of zinc alloy with chrome plating. Without lid. Has protection - IP55
The diameter of the contacts is 1.0 mm. The connected wire may have a cross-section with a diameter of ≤ 0.75 mm2 (AWG ≤ 18).
Weipu WF20 series connectors can be used both indoors and outdoors.
| Dimensions and diagram of connectors of the WF TN series cable corner connector with an adapter for plastic hose | ||
 | ||
| Number of contacts | 15 | |
| H | 53.5 | |
| L | 56.5 | |
| Adapter size | PG11 | |
| Hose size | AD15.8 | |
Characteristics of Weipu WF series connectors
| Explanation of Weipu-WF connector markings | ||||||||||
| WF | 20 | J | 15 | TW | 1 | |||||
| WF | - Weipu connector series |
| 20 | - connector size (16; 20; 24; 28; 32; 48; 55) |
| J | - plug ( K - socket) |
| 15 | - number of contacts (2, 3, 4, 5, 6, 6B, 7, 8, 9, 12, 15) |
| TW | - cable angled plug with adapter for plastic hose |
| 1 | - fastening wires to contacts using soldering (2 - fastening wires with screws; 3 - crimping) |
