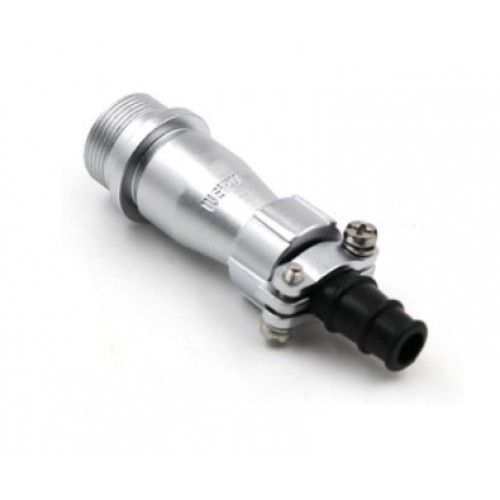

Connector WF16K7ZIB1 - seven-pin sealed intercable socket with direct cable outlet. It has a mounting diameter of 16 mm, connects a circuit with a current of up to 5A and a voltage of up to 400V, the wires are fastened by soldering. Degree of protection - IP65.
The housing of this connector is sealed and dustproof, made of zinc alloy with chrome plating. Can be equipped with a metal cover, which must be ordered separately.
Contact diameter - 1.0 mm. The connected wire may have a cross-section with a diameter of≤ 0.75 mm2 (AWG≤ 18).
Weipu WF16 series connectors can be used both indoors and outdoors.
| Dimensions and diagram of connectors of the WF ZIB series inter-cable connector with mechanical clamp | ||
 | ||
| Number of contacts | 2, 3, 4, 5, 7, 9, 10 | |
| D | M18x1 | |
| L | 73.5 | |
| ⌀d | 7-8 | |
Characteristics of Weipu series connectors WF
| Explanation of Weipu-WF connector markings | ||||||||||
| WF | 16 | K | 7 | ZIB | 1 | |||||
| WF | - Weipu connector series |
| 16 | - connector size (16; 20; 24; 28; 32; 48; 55) |
| K | - socket ( J - plug) |
| 7 | - number of contacts (2, 3, 4, 2B, 3B, 4B, 5, 7, 9, 10) |
| ZIB | - inter-cable connector with mechanical clamp |
| 1 | - fastening wires to contacts using soldering (2 - fastening wires with screws; 3 - crimping) |
