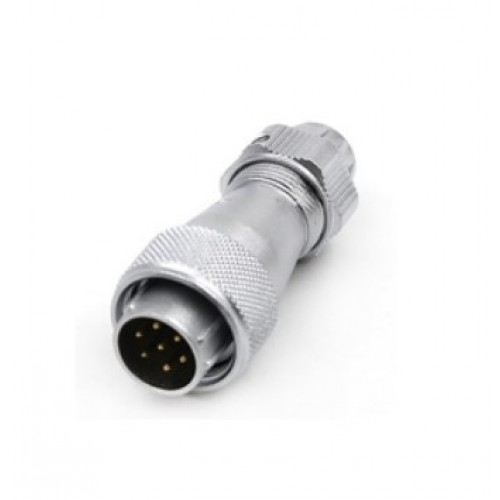

Connector WF16J7TE1 - seven-pin sealed cable plug with direct cable outlet. It has a mounting diameter of 16 mm, connects a circuit with a current of up to 5A and a voltage of up to 400V, the wires are fastened by soldering. Degree of protection - IP67.
The housing of this connector is sealed and dustproof, made of zinc alloy with chrome plating. Without cover.
Contact diameter - 1.0 mm. The connected wire may have a cross-section with a diameter ≤ 0.75 mm2 (AWG ≤ 18).
Weipu WF16 series connectors can be used both indoors and outdoors.
| Dimensions and diagram of WF TE series connectors cable connector with metal clamp nut | ||
 | ||
| Number of contacts | 2, 3, 4, 5, 7, 9, 10 | |
| ⌀D | 22 | |
| L | 54.5 | |
| ⌀d | 5-6.5 | |
Characteristics of Weipu WF series connectors
| Decoding of connector markings Weipu-WF | ||||||||||
| WF | 16 | J | 7 | TE | 1 | |||||
| WF | - Weipu connector series |
| 16 | - connector size (20; 24; 28; 32; 40; 55) |
| J | - plug ( K - socket) |
| 7 | - number of contacts (2, 3, 4, 2B, 3B, 4B, 5, 7, 9, 10) |
| TE | - cable plug with metal protective nut |
| 1 | - fastening the wires to the contacts using soldering (2 - fastening the wires with screws; 3 - crimping) |
