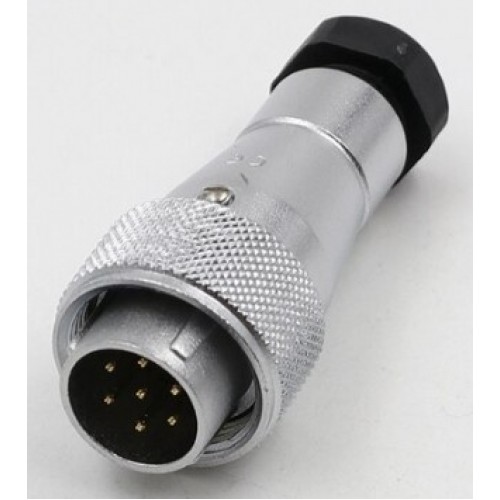

Connector WF16J7TA1 - seven-pin sealed cable plug with direct cable outlet. It has a mounting diameter of 16 mm, connects a circuit with a current of up to 5A and a voltage of up to 400V, the wires are fastened by soldering.
The housing of this connector is sealed and Dustproof, made of zinc alloy with chrome plating. Without lid. Has protection - IP65
Contact diameter - 1.0 mm. The connected wire may have a cross-section with a diameter ≤ 0.75 mm2 (AWG ≤ 18).
Weipu WF16 series connectors can be used both indoors and outdoors.
| Dimensions and connector diagram of the WF series cable plug with plastic clamping nut TA | ||
 | ||
| Number of contacts | 7 | |
| ⌀D | 22 | |
| L | 53.5 | |
| ⌀d | 4.5-7 | |
| Current, A | 5 | |
| Voltage, V | 400 | |
| Response | |
| WF16J7TA1 | WF16K7Z1 |
WF16K7ZMQ1 | |
WF16K7ZG1 | |
WF16K7ZAB1 | |
WF16K7ZA1 | |
WF16K7ZEB1 | |
WF16K7ZE1 | |
WF16K7ZIB1 | |
WF16K7ZI1 | |
WF16K7ZNB1 | |
WF16K7ZHB1 | |
WF16K7ZN1 | |
WF16K7ZH1 | |
