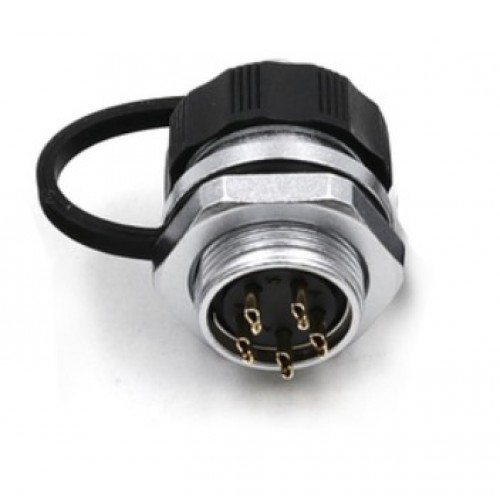

Connector WF16J5ZM1 - five-pin sealed panel plug with direct cable outlet. It has a mounting diameter of 16 mm, connects a circuit with a current of up to 5A and a voltage of up to 500V, the wires are fastened by soldering. Degree of protection - IP67.
The housing of this connector is sealed and dustproof, made of zinc alloy with chrome plating. Without cover.
Contact diameter - 1.0 mm. The connected wire may have a cross-section with a diameter of≤ 0.75 mm2 (AWG≤ 18).
Weipu WF16 series connectors can be used both indoors and outdoors.

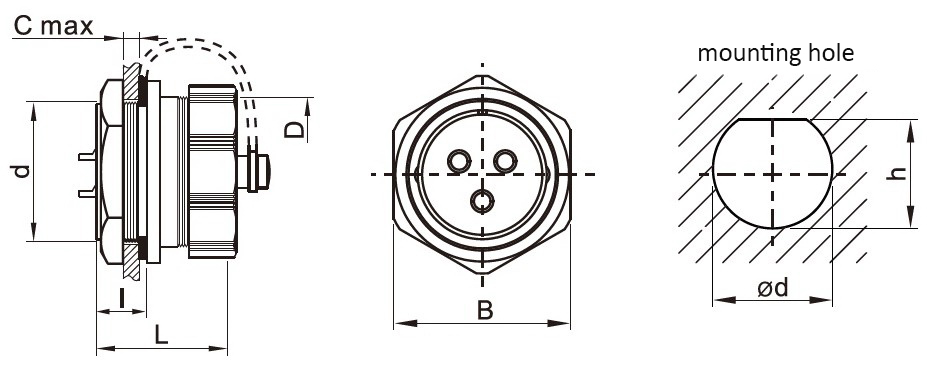

| Dimensions and diagram of connectors of the WF ZM series panel connector with fastening to the block with a nut (rear) | ||
 | ||

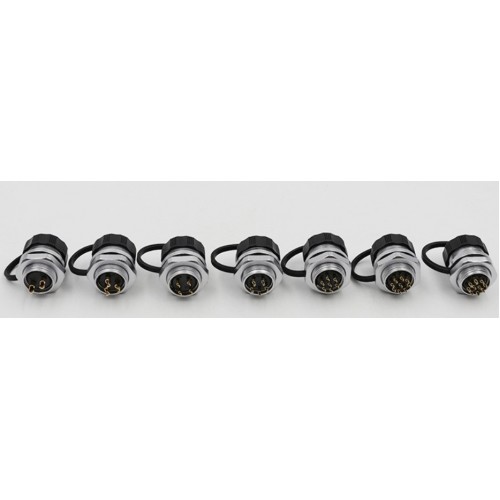

| Number of contacts | 2, 3, 4, 5, 7, 9, 10 | |
| d | M16x1 | |
| D | M18x1 | |
| C | 5 | |
| I | 9.7 | |
| L | 22 | |
| B | 21.2 | |
| ⌀d | 15.7 | |
| h | 15.3 | |
Characteristics of Weipu WF series connectors
| Explanation of Weipu-WF connector markings | ||||||||||
| WF | 16 | J | 5 | ZM | 1 | |||||
| WF | - Weipu connector series |
| 16 | - connector size (20; 24; 28; 32; 40; 55) |
| J | - plug ( K - socket) |
| 5 | - number of contacts (2, 3, 4, 2B, 3B, 4B, 5, 7, 9, 10) |
| ZM | - panel connector with fastening to the block with a nut (rear) |
| 1 | - fastening wires to contacts using soldering (2 - fastening wires with screws; 3 - crimping) |
