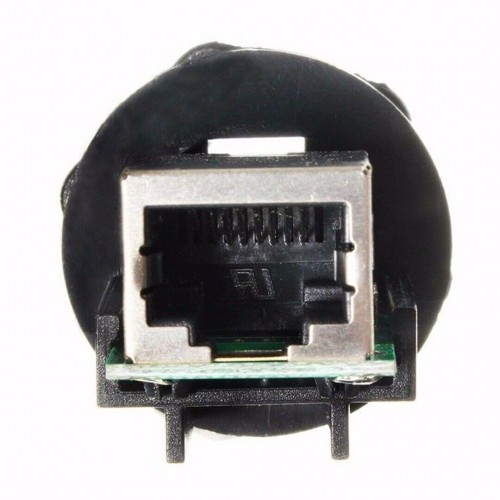

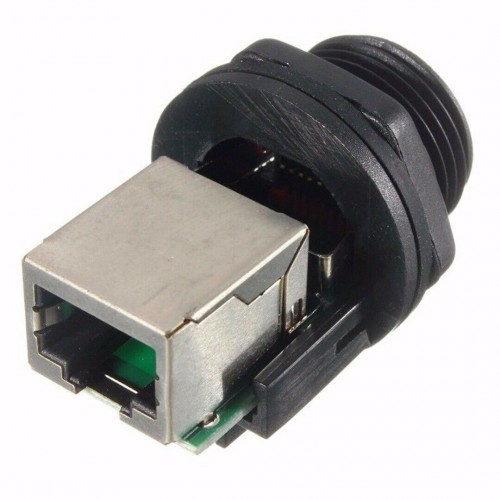

RJ45 IP54 – rj45 connector in a sealed panel design for manual connection, internal volumetric installation. Consists of block not sealed part that is attached to the block with a nut.
The instrument part of the connector is not sealed pass-through adapter which contains two RJ45 (8Р8С) sockets, case diameter Ø20.6 mm.
Technical characteristics of the SZC19/1 RJ45 connector:
| Type | Sealed connector |
| Contact | 2 x 8P8C UTP/ FTP socket |
| Connecting part | instrument |
| Operating temperature | -25°C – +125°C |
| Material | plastic |
| Nominal current | 0.2A |
| Rated voltage | 36V |
| Test voltage | 1500V |
| Contact resistance | <10 mOhm |
| ;Insulation resistance | >100 mOhm |
| Maximum cable diameter | 7 mm |
| Protection level | ip54 |
