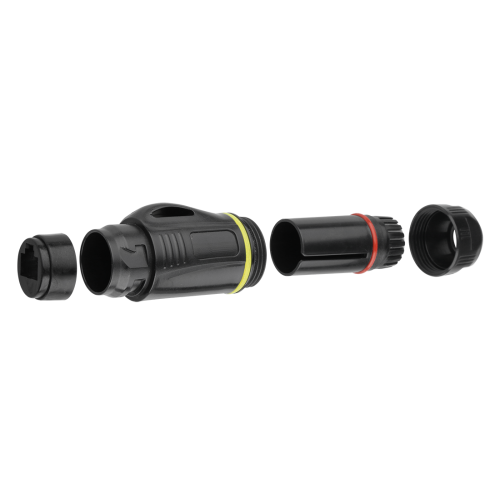

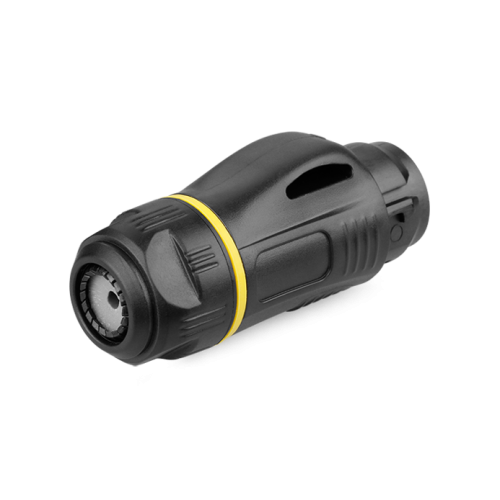

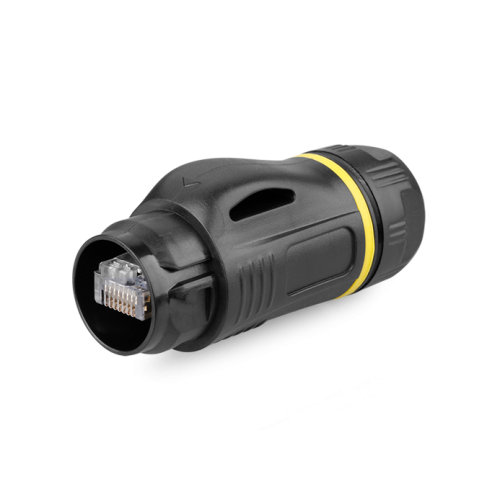

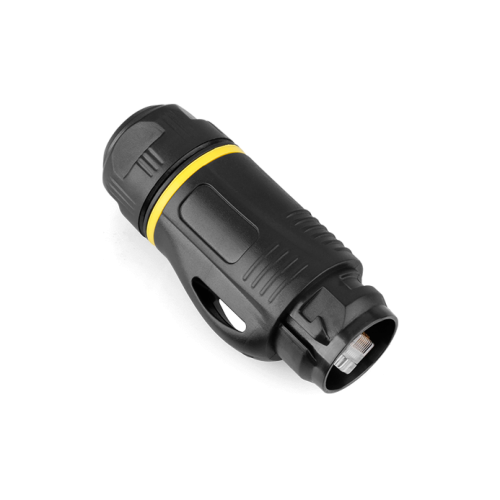

BD series sealed connector is our new series of products with optimized style. Direct locking design ensures more stable connection, more convenient operation and longer use period. Quick connect design allows you to turn on/off the power with one hand. With military standard screw type locking.
The contact part must be soldered to the end of the conductor.
Characteristics of BD Series Sealed RJ45 Connector | |
| Nominal current | 1.5 A |
| Cable diameter | Φ 5.5 - 7.0 mm |
| Cable characteristics | 0.15-0.2 mm2 / 26-24 AWG |
| Contact resistance | < 30 Ohm |
| Number of contacts | 8 |
| Number of connections | > 1700 |
| Operating temperature range | -40°С ... +80°С |
| Protection class | IP65 / IP67 |
| Flammability class | UL94-V0 |
| Certificates | CE, CCC, RoHS, ISO9001 |
