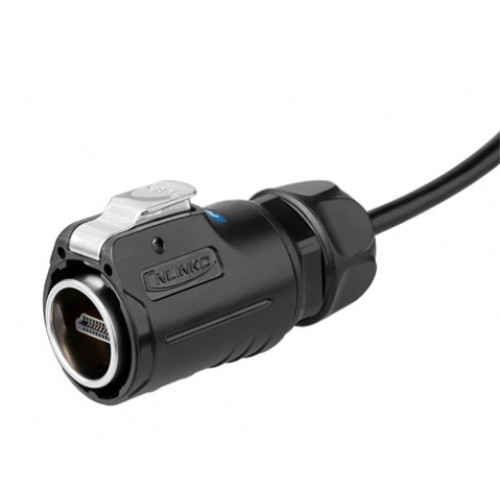

Sealed connector HDMI - LP24-HDMI-MP-MP-1M-001 - This is a cable plug with a push-button clamp and a cable 1 m long. The plug is made of special plastic that reduces electromagnetic interference and is also protected from ultraviolet radiation.
The corresponding part of the LP24-HDMI-MP-MP-1M-001 cable plug is a panel socket - LP24-J/HDMI2/213/SX-43-401 with a rubber cover.
The LP24 series connectors are dustproof, waterproof and IP67 rated, which guarantees the connectors will function when submerged in water to a depth of 1m for 30 minutes.
The HDMI connector provides reliable transmission of high-definition digital video and multi-channel digital audio with copy protection. Also, the HDMI connector can provide a digital DVI connection to multiple devices using appropriate cables.
| Characteristics |
|
| Series |
LP24-HDMI-MP-MP-1M-001 |
| Number of contacts |
19 |
| Installation diameter, mm |
Ø 24.60 |
| Minimum operating temperature |
-40° |
| Maximum operating temperature |
+80° |
| Number of connections |
≥ 500 |
| Degree of protection |
IP65/IP67 |
| Contact resistance |
< 30 mΩ |
| Rated current, A |
1,5 |
| Certified Standards |
UL1977, CE EN60309-1, TÜV |
| Sealed connector dimensions HDMI | |

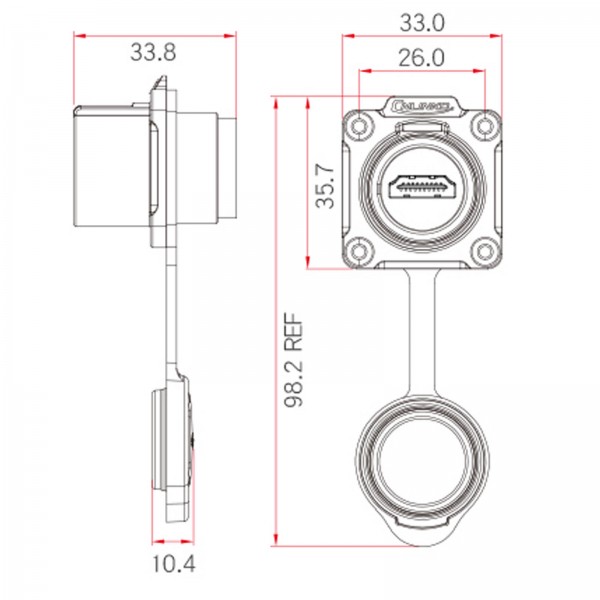

| Panel plug |

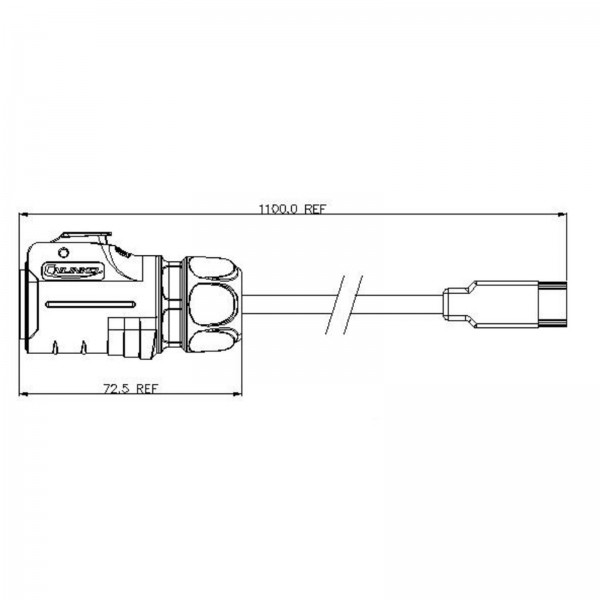

Cable socket |
 |
 |
