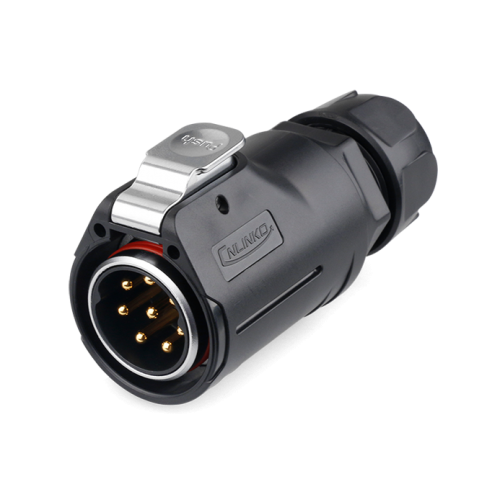

Sealed power connector series LP - LP-28-C08PE-21-001 - 8-pin LP series sealed cable plug with direct cable outlet 8-6 AWG and lock. The fork has a through diameter - 28 mm, connects a circuit up to 15 A and voltage up to 500 B.
The housing parts are made of high-quality structural plastics. The connector pins are cylindrical, the material is brass. The connector is articulated using a secure snap lock.
Maximum cable diameter for sealed connector LP28 series - 20 mm.
LP series is one of the best-selling serial products. Quick connect design allows you to connect/disconnect the connector with one hand.
Application areas of sealed connectors LP series - for assembling audio-video equipment in conditions of moisture and dust, for using equipment under water, for connecting solar panels.
The connectors have IP67 protection - protected from moisture and dust, guaranteed to work under water at a depth of 1 m for 30 minutes.Detailed characteristics of LP series connectors in plastic
| Quantity contacts | 2PIN | 3PIN | 8PIN |
| Rated current, A | 50A | 35A | 15A |
| Operating voltage, V | 500V | ||
| Pulse voltage, V | 1500V | ||
| Contact diameter, mm | 4 | 3 | |
| Cable diameter | 18.0~ 20.0mm | 13.0~ 15.0mm | |
| Cable specification | 13mm²-/6AWG | 8mm²-/8AWG | 2.5mm²-4.0mm² |
| Temperature change | 10A contact temperature 30℃↓ ；12A - 40℃↓ ；15A - 50℃↓ | ||
| The number of connections resource | ≥1700 | ||
| Operating temperature | -40℃～80℃ | ||
| Connection type | latch | ||
| Connecting contacts with a wire | screw | solder | |
| Protection level | IP65/IP67 | ||
Overall dimensions of the LP-28 series sealed connector
| Cable plug | Block socket (panel) |
 |   |
Contact layouts in sealed connectors of the LP series
| Connector series | Number of contacts | Contact layout | Response |
| LP-28-C02PE-21-001 | 2 |  | LP-28-J02SX-23-401 |
| LP-28-C03PE-21-001 | 3 |  | LP-28-J03SX-23-401 |
| LP-28-C08PE-21-001 | 8 |  | LP-28-J08SX-03-401 |
Connection diagram of a sealed connector - cable plug and panel socket
 |
