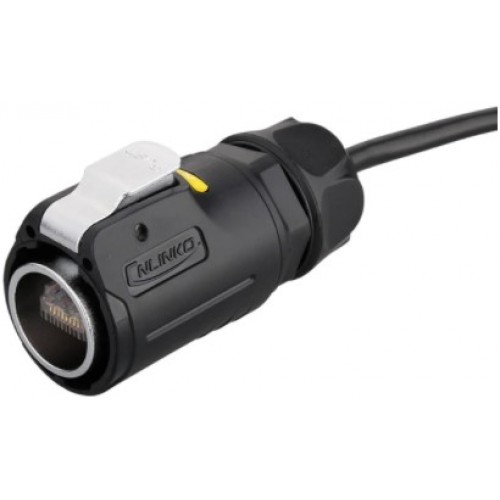

Sealed RJ45 connector series LP made of IPX8 plastic housing with button lock. Secure RJ45 plug connection for data transmission in industrial environments, 61.6 mm long. The network connector is water- and dust-proof, complies with IP67 protection class.
The counter part is panel RJ45 socket - LP-24-J/RJ45/213 /SX -43-401

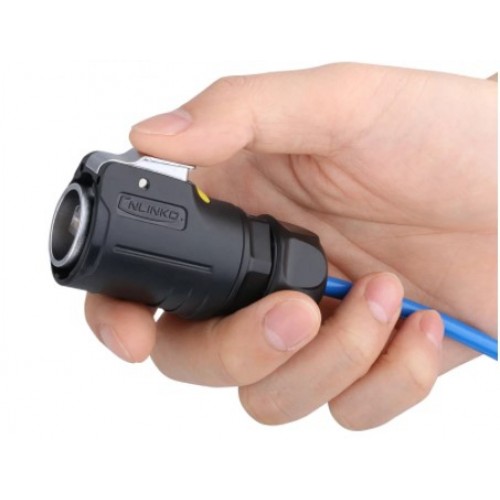

The metal lock ensures a secure connection and protects against interruptions in data and power transmission. The RJ45 cable extension has a quick connect connection. Quick connect design allows you to connect and disconnect the plug with one hand.
Connectors RJ45LP series - quick-release, with a latch, can be used in the construction of unmanned aerial vehicles, robots, medical equipment.
| Rated current | 1.5A |
| Operating voltage | - |
| Impulse voltage (AC.V) 1 minute | 1000V |
| Diameter and number of contacts | 8pin |
| Cable diameter range | Φ5.5mm～Φ7mm |
| Cable specification | 0.15mm2～0.2mm2/26-24 AWG |
| Contact resistance | <30.0mΩ |
| Temperature change | - |
| Insulation resistance | ＞500MΩ |
| Protection level | IP65/IP67 |
| Resource number of connections | ≥500 |
| Operating temperature | -40℃～80℃ |
| Connection type | snap |
| Wire connection method | - |
| Material | High-strength engineering plastic |
| Contacts | - |
| Flammability class | UL94-V0 |
| PDF Documentation |
|
| Connector view |
|
| Panel socket diagram | Cable plug diagram |
 |  |
