LP-series sealed power connector LP-20-J04SX-03-401 - 4-pin sealed panel socket LP series with direct output for cable 14-12 AWG. Rosette has a passage diameter - 20 mm, connects a...

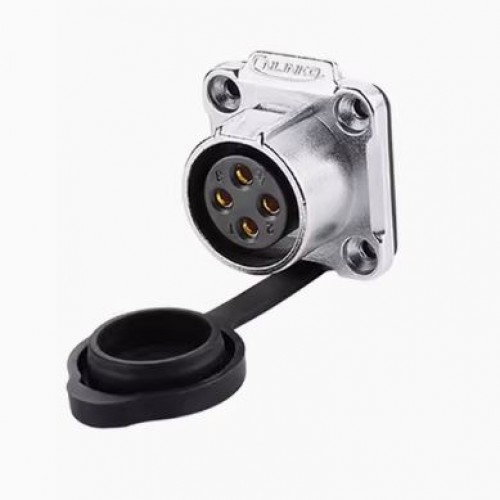

LP-series sealed power connectorLP-20-J04SX-03-401 - 4-pin sealed panel socket LP series with direct output for cable 14-12 AWG. Rosette has a passage diameter - 20 mm, connects a circuit up to 20 A and voltage up to 500 V.

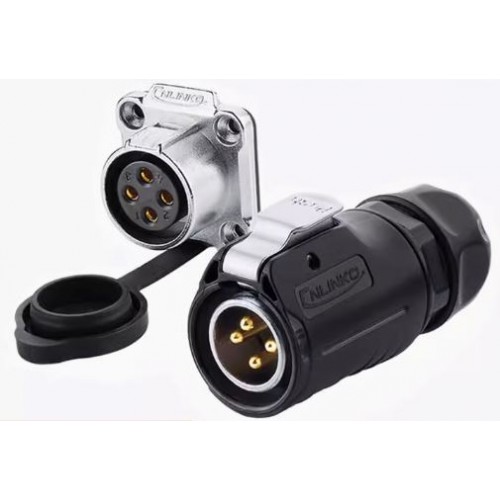

Matching part to the panel socket LP-20-J04SX-03-401
Type of sealed connector housing - block or cable Type of connector - plug or socket.
The housing parts are made of high-quality structural plastics. The connector pins are cylindrical, the material is brass. The connector is articulated using a reliable latch-lock.
The maximum cable diameter for the sealed connector of the LP20 series is 13 mm.
LP series is one of the best-selling serial products. Design with quick connection allows you to connect/disconnect the connector with one hand.
There are various sizes from M12 to M24 to support all types of connections, such as: *cable plug + cable socket * cable socket + panel plug * cable plug + panel socket* cable socket + cable plug
Areas of application of sealed connectors of the LP series - when assembling audio-video equipment in conditions of moisture and dust, for using equipment under water, for connecting solar panels.
The connectors have IP67 protection - protected from moisture and dust, guaranteed to work under water at depth 1 m for 30 minutes.
Detailed characteristics of LP series connectors in plastic
Number of contacts
2 pin
3 pin
4 pin
5 pin
7 pin
9 pin
12 pin
14 pin
Rated current
20A
10A
5A
Operating voltage
AC 500V
AC 500V
AC 250V
Pulse voltage
2500V
Resistance contacts
< 1.0 mΩ
< 2.5 mΩ
< 5.0 mΩ
Protection class
IP67
Change temperature
20A contact temperature 30℃↓ ；25A - 40℃↓ ；30A - 50℃↓
Number of connections
> 1700
Diameter contacts, mm
2.7
2.7
2.7
1.8
1.8
1, 0
1.0
1.0
Operating temperature
-40℃～80℃
-40℃～80℃
-40℃～80℃
-40℃～80℃
-40℃～80℃
-40℃～80℃
-40℃～80℃
-40℃～80℃
Cable characteristics for the LP-20 series connector
Number of contacts
2 pin
3 pin
4 pin
5 pin
7 pin
9 pin
12 pin
14 pin
Specification cable
UL2464 24AWG*
2C
3C
4C
5C
6C
7C
8C
9C
Cable range
9.0~ 13.0
9.0~ 13.0
9.0~ 13.0
7.0~ 10.0
7.0~ 10.0
7.0~ 10.0
7.0~ 10.0
7.0~ 10.0
Overall dimensions of the LP-20 series sealed connector
Cable plug
Panel socket
Connection diagram of a sealed connector - cable plug and panel socket
