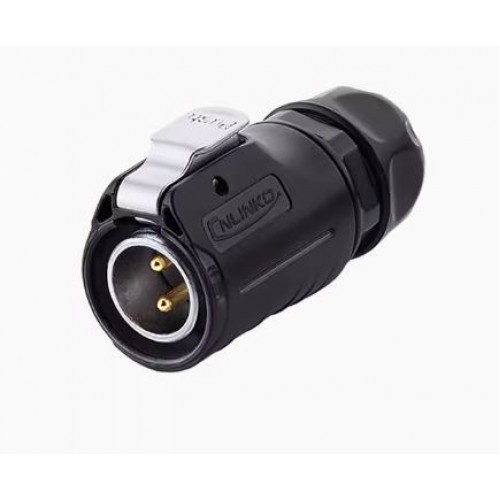

Sealed power connector LP series - LP-20-C02PE-01-022 - 2-pin LP series sealed cable plug with direct cable outlet 14-12 AWG. The fork has a passage diameter - 20 mm,connects a circuit up to 20 A and voltage up to 500 V.
Matching part to the cable plug LP-20-C02PE-01-022
The housing type of the sealed connector is block or cable. Connector type - plug or socket.

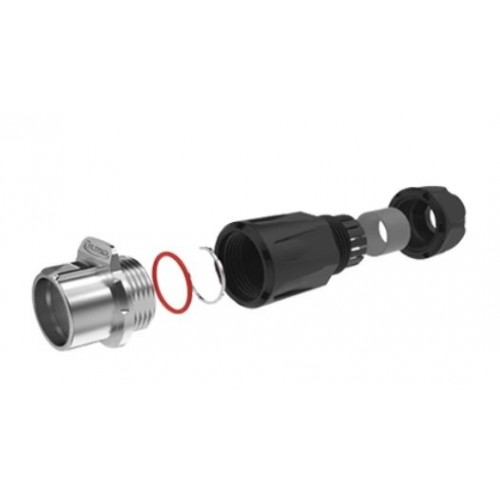

The housing parts are made of high-quality structural plastics. The connector pins are cylindrical, the material is brass. The connector is articulated using a secure snap lock.
Maximum cable diameter for sealed connector LP20 series - 13 mm.
LP series is one of the best-selling serial products. Quick connect design allows you to plug/unplug the connector with one hand.

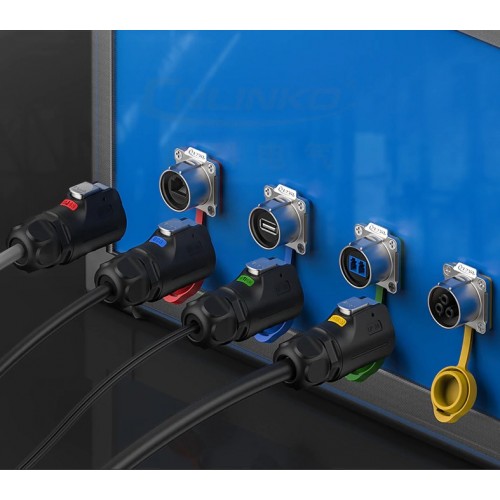

Various sizes available from M12 to M24 to support all types of connections such as: *cable plug + cable socket * cable socket + panel plug * cable plug + panel socket * cable socket + cable plug

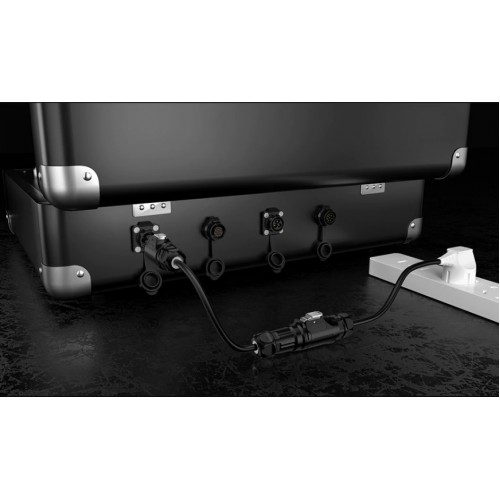

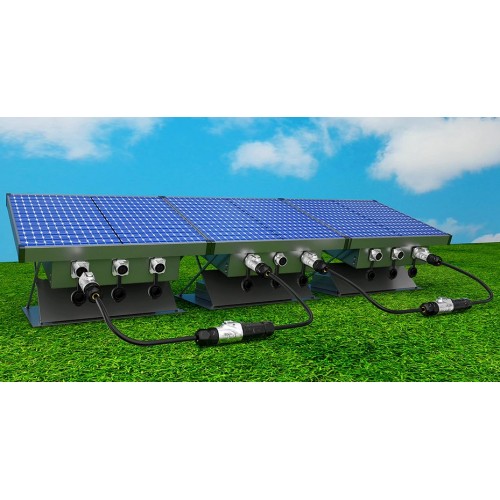

Areas of application of sealed connectors of the LP series - when assembling audio-video equipment in conditions of moisture and dust, for using equipment underwater, for connecting solar panels.
The connectors are protected IP67 - protected from moisture and dust, guaranteed to work underwater at a depth of 1 m for 30 minutes.
Detailed characteristics of LP series connectors in plastic
Number of contacts
2 pin
3 pin
4 pin
5 pin
7 pin
9 pin
12 pin
14 pin
Rated current
20A
10A
5A
Operating voltage
AC 500V
AC 500V
AC 250V
Pulse voltage
2500V
Resistance contacts
< 1.0 mΩ
< 2.5 mΩ
< 5.0 mΩ
Protection class
IP67
Change temperature
20A contact temperature 30℃↓ ；25A - 40℃↓ ；30A - 50℃↓
Number of connections
> 1700
Diameter contacts, mm
2.7
2.7
2.7
1.8
1.8
1, 0
1.0
1.0
Operating temperature
-40℃～80℃
-40℃～80℃
-40℃～80℃
-40℃～80℃
-40℃～80℃
-40℃～80℃
-40℃～80℃
-40℃～80℃
Cable characteristics for the LP-20 series connector
Number of contacts
2 pin
3 pin
4 pin
5 pin
7 pin
9 pin
12 pin
14 pin
Specification cable
UL2464 24AWG*
2C
3C
4C
5C
6C
7C
8C
9C
Cable range
9.0~ 13.0
9.0~ 13.0
9.0~ 13.0
7.0~ 10.0
7.0~ 10.0
7.0~ 10.0
7.0~ 10.0
7.0~ 10.0
Overall dimensions of the LP-20 series sealed connector
Cable plug
Block socket (panel)
Connection diagram of a sealed connector - cable plug and cable socket

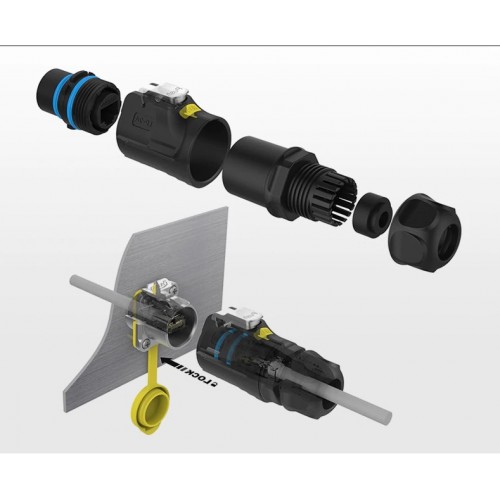

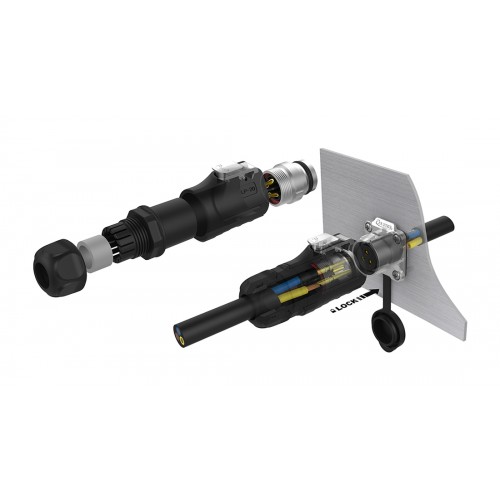

Connection diagram of a sealed connector - cable plug and panel socket
