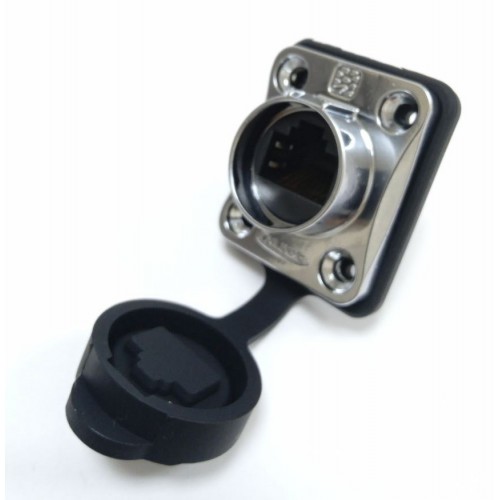

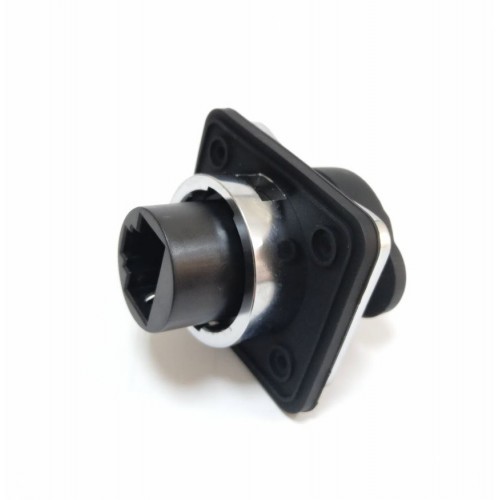

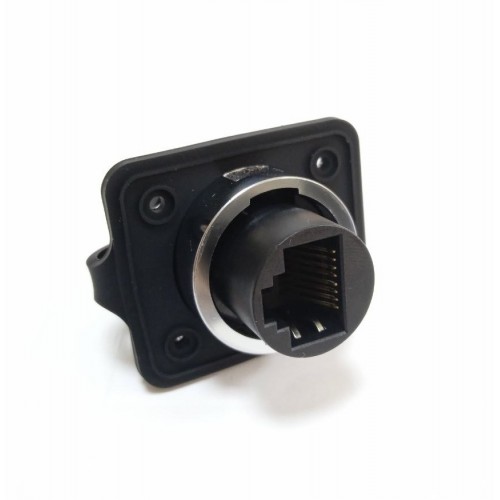

Sealed connector LP-16-J/RJ45/210/SX-03-401 - panel socket in a housing made of a special alloy, which reduces electromagnetic and radio frequency interference, with a special connection technology. This alloy is resistant to corrosion , resistant to temperature and pressure.

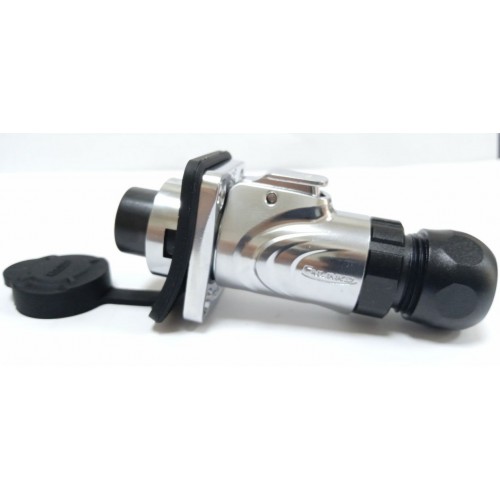

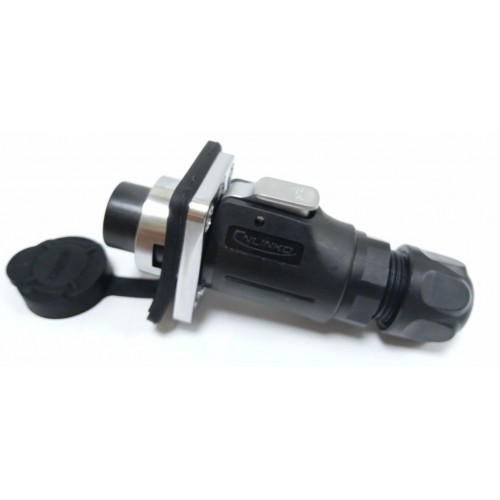

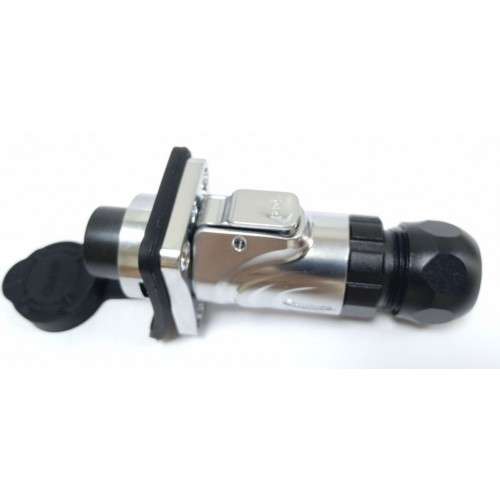

The counter part of the panel socket LP-16-J/RJ45/210/SX-03-401 will be a cable plug LP-16-C/RJ45/015/PE-42-001 or cable plug LP-16-C/RJ45/015/PE-43-001
Connection method LP16 series connectors lock with latch, quick-release.
LP16 series connectors are dustproof and waterproof and correspond to the degree of protection IP67, which guarantees the operation of the connectors when immersed in water to a depth of 1 m for 30 minutes.
RJ45 connectors can be used in the design of unmanned aerial vehicles, robots , medical equipment, as well as during operation and assembly LED screens.
| Contact | RJ45 |
| Contact view |
|
| Rated current | 1.2A |
| Operating voltage | 42V |
| Withstand voltage | 500V |
| Contact resistance | <2.5mΩ |
| Changing contact temperature | 10A contact temperature 30℃↓ ；12A - 40℃↓ ；15A - 50℃↓ |
| Contact diameter and number | ⌀ 1.5x8 |
| Resource | > 750 |
| Operating temperature | -40С...+80С |
| Cable diameter | ⌀ 5.5mm～⌀ 7mm |
| Protection | IP67 |
| Connector diagram | |
| Cable plug | Panel socket |
 |  |
