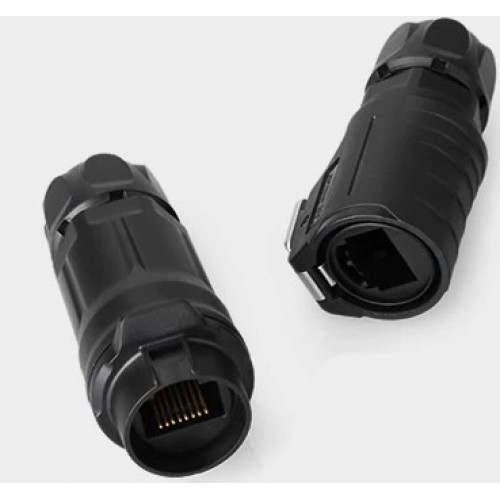

Sealed RJ45 connector series LP made of IPX8 plastic housing with push-button locking. Secure RJ45 plug connection for data transmission in industrial environments, 61.6 mm long. The power connector is waterproof and dustproof and complies with IP67 protection class.
Metal The lockensures a secure connection and protects against interruptions in data and power transmission. The RJ45 cable extension has a quick disconnect connection. Quick connect design allows you to connect and disconnect the plug with one hand.
RJ45 connectors LP series - quick-release, with a latch, can be used in the construction of unmanned aerial vehicles, robots, medical equipment.
Characteristics sealed RJ45 connector LP-16 series
| Contact | RJ45 |
| Contact view |
|
| Rated current | 1.2A |
| Operating voltage | 42V |
| Withstand voltage | 500V |
| Contact resistance | < 2.5mΩ |
| Change temperature | 10A contact temperature 30℃↓ ；12A - 40℃↓ ；15A - 50℃↓ |
| Number of contacts | 8 |
| Number of connections | > 750 |
| Operating temperature | -40С...+80С |
| Cable specification | Φ5.5mm～Φ7mm |
| Protection | IP67 |
| Connecting the RJ45 connector |
|
