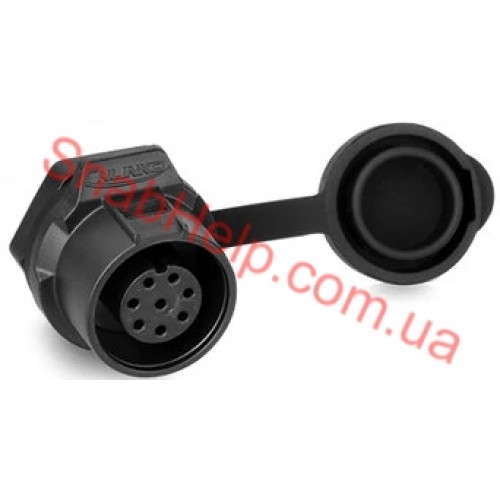

Sealed power connector LP series - LP-12-J08SX-02-101 - 8-pin sealed panel (block) socket LP series with direct output for cable 24AWG,without pipe with fastening to the panel nut. The connector has a through diameter - 12 mm,oensures connection of eight contacts with a diameter of 1 mm with an operating current load of up to 5A.
The housing parts are made of high-quality structural plastics. The connector pins are cylindrical, the material is brass. The connector is articulated using a reliable latch lock .
LP Series - one of the best-selling series products. Quick connect design allows you to connect/disconnect the connector with one hand.
There are various sizes from M12 to M24 to support all types of connections, such as: * cable plug + cable socket * cable socket + panel plug * cable plug + panel socket * cable socket + cable plug
Areas of application of sealed connectors of the LP series are when assembling audio and video equipment in conditions of moisture and dust, for using equipment under water.
Detailed characteristics of LP series connectors in plastic
| Number of contacts | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| Rated current, A | 5A | 3А | |||||
| Operating voltage | 150V | 100V | |||||
| Impulse voltage (AC.V) 1 minute | 1500V | 1000V | |||||
| Diameter x number of contacts | Ф1х2 | Ф1х3 | Ф1х4 | Ф1х5 | Ф1х6 | Ф1х7 | Ф1х8 |
| Cable diameter range | 3.0~6.0mm | ||||||
| Cable specification | UL2464 24AWG*2C | UL2464 24AWG*3C | UL2464 24AWG*4C | UL2464 24AWG*5C | UL2464 24AWG*6C | UL2464 24AWG*7C | UL2464 24AWG*8C |
| Contact resistance | <5.0mΩ | <10.0mΩ | |||||
| Temperature change | 5A contact temperature 30℃↓ ；7A - 40℃↓ ；10A - 50℃↓ | ||||||
| Insulation resistance | ＞500MΩ | ||||||
| Protection level | IP67 | ||||||
| Resource number of connections | ≥1700 | ||||||
| Operating temperature | -40℃～80℃ | ||||||
Contact layouts in sealed connectors of the LP series
| Connector series | Number of contacts | Contact layout | Mate | font>
| LP-12-J02SX-02-101 | 2 |  | LP-12-C02PE-02-001 |
| LP-12-J03SX-02-101 | 3 |  | LP-12-C03PE-02-001 |
| LP-12-J04SX-02-101 | 4 |  | LP-12-C04PE-02-001 |
| LP-12-J05SX-02-101 | 5 |  | LP-12-C05PE-02-001 |
| LP-12-J06SX-02-101 | 6 |  | LP-12-C06PE-02-001 |
| LP-12-J07SX-02-101 | 7 |  | LP-12-C07PE-02-001 |
| LP-12-J08SX-02-101 | 8 |  | LP-12-C08PE-02-001 |
| Dimensions and installation coordinates | |
 |  |
Connection diagram of a sealed connector - cable plug and panel socket
General view of the LP12 series connectors
