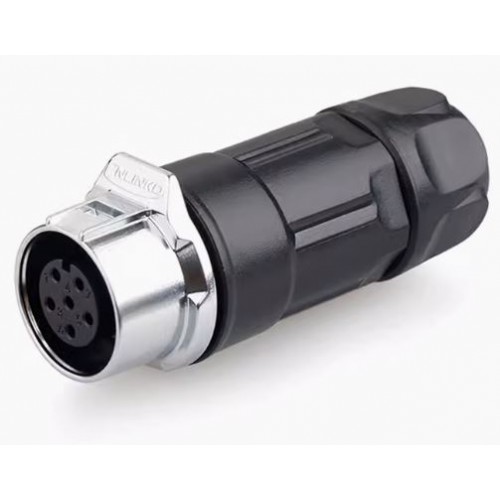

Sealed power connector LP series - LP-12-J06PP-03-001 - 6-i pin sealed cable socket in LP series metal case with direct cable outlet 24AWG. The connector has a bore diameter - 12 mm, connects circuits with a current of 5A and a voltage of 150V
<; span style="font-size: 14px;">The housing parts are made of high-quality structural plastics. The connector pins are cylindrical, the material is brass. The connector is articulated using a reliable latch-lock.
LP series is one of the best-selling serial products. Quick connect design allows you to plug/unplug the connector with one hand.
Various sizes available from M12 to M24 to support all types of connections such as: *cable plug + cable socket * cable socket + panel plug * cable plug + panel socket * cable socket + cable plug
Areas of application of sealed connectors of the LP series - when assembling audio-video equipment in conditions of moisture and dust, for using equipment under water.
Detailed characteristics of LP series connectors in metal
| Number of contacts | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| Rated current, A | 5A | 3А | |||||
| Operating voltage | 150V | 100V | |||||
| Impulse voltage (AC.V) 1 minute | 1500V | 1000V | |||||
| Diameter x number of contacts | Ф1х2 | Ф1х3 | Ф1х4 | Ф1х5 | Ф1х6 | Ф1х7 | Ф1х8 |
| Cable diameter range | 3.0~6.0mm | ||||||
| Cable specification | UL2464 24AWG*2C | UL2464 24AWG*3C | UL2464 24AWG*4C | UL2464 24AWG*5C | UL2464 24AWG*6C | UL2464 24AWG*7C | UL2464 24AWG*8C |
| Contact resistance | <5.0mΩ | <10.0mΩ | |||||
| Temperature change | 5A contact temperature 30℃↓ ；7A - 40℃↓ ；10A - 50℃↓ | ||||||
| Insulation resistance | ＞500MΩ | ||||||
| Protection level | IP67 | ||||||
| Resource number of connections | ≥1700 | ||||||
| Operating temperature | -40℃～80℃ | ||||||
Contact layouts in sealed connectors of the LP series
| Connector series | Number of contacts | Contact layout | Response |
| LP-12-J02PP-03-001 | 2 |  | LP-12-C02PE-03-001 |
| LP-12-J03PP-03-001 | 3 |  | LP-12-C03PE-03-001 |
| LP-12-J04PP-03-001 | 4 |  | LP-12-C04PE-03-001 |
| LP-12-J05PP-03-001 | 5 |  | LP-12-C05PE-03-001 |
| LP-12-J06PP-03-001 | 6 |  | LP-12-C06PE-03-001 |
| LP-12-J07PP-03-001 | 7 |  | LP-12-C07PE-03-001 |
| LP-12-J08PP-03-001 | 8 |  | LP-12-C08PE-03-001 |
| Dimensions and installation coordinates | |
 |  |
 | |
Connection diagram of a sealed connector - cable plug and cable socket
