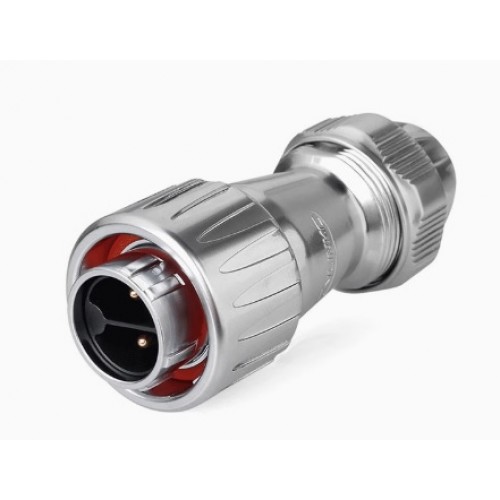

Hermetic connector Cnlinko DZ-20-C02PE-02-001 - this industrial cable plug with 2 contacts, voltage 300V and current 20A. The connector is intended for professional equipment that requires high tightness and protection from external factors. These connectors are distinguished by an increased degree of protection (IP67), which makes them resistant to dust and moisture penetration, which is especially useful in difficult operating conditions.
A feature of the DZ series is their strong metal body, which guarantees durability and protection of contacts; and copper contacts with golding ensure a reliable connection and anti-corrosion properties. The diameter of the contacts is 2.7 mm.

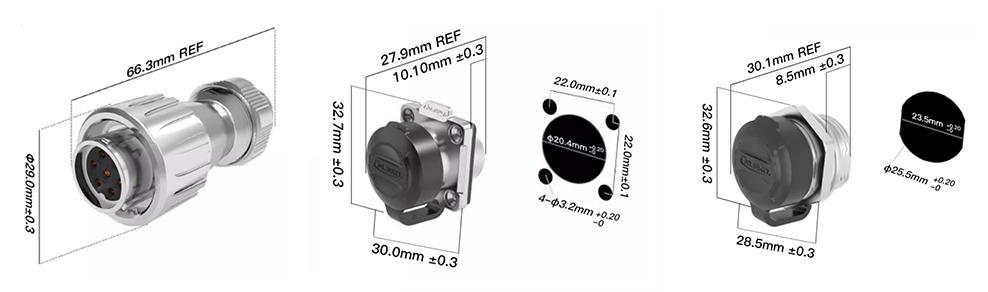

Table of DZ-20 connector parameters
| Number of contacts | 2 | 3 | 4 | 5 | 7 | 9 | 12 | 14 | |
| Rated current, A | 20 | 10 | 5 | ||||||
| Operating voltage, V | 300 | 300 | 250 | ||||||
| Short-term voltage, V | 2000 | 1500 | 1500 | ||||||
| Contact resistance, mΩ | <1.0 | <3.0 | <5.0 | ||||||
| Diameter of contacts, mm | <2.7 | <1.8 | <1.0 | ||||||
| Operating temperature | -40℃ ~ +80℃ | ||||||||
| Level of protection | IP67 | ||||||||
