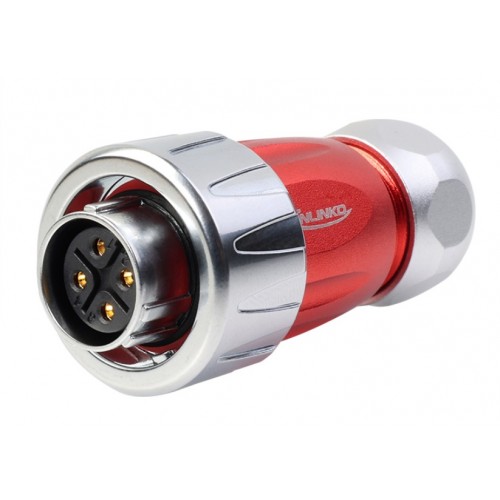

Quick disconnect connector (bayonet) DH-16-J04PE-03-001A - 4-pin hermetic cable socket with a direct output under the cable. It has a mounting diameter of 16 mm - a connector for manual connection, internal installation, connects the circuit 10 A and voltage up to 400 V.
The corresponding part to the cable outlet DH-16-J04PE-03-001A - is:
- panel plug with nut behind DH-16-C04SX-03-101 or DH-16-C04SX-03-102
- panel plug for 4 screws DH-16-C04SX-03-401 or DH-16-C04SX-03-402
The special feature of this connector is quick disconnection, tightness, dust protection, zinc alloy body.
Connectors have IP68 protection - protected against moisture and dust, guaranteed operation under water at a depth of 1 m for 30 minutes.
Hermetic connectors of the DH series are very often used in conditions of high humidity and pollution, in the design of unmanned aerial vehicles, robotic equipment, military equipment and medical equipment.
Comparative table of characteristics of DH-16 series connectors
| Number of contacts | 3pin | 4pin | 9pin |
| Rated current, A | 10A | 10A | 5A |
| Working voltage, V | 400V | 400V | 250V |
| Pulse voltage, V | 2000V | 2000V | 1500V |
| Diameter of contacts, mm² | 1.5~1.0 mm² | 1.5~1.0 mm² | 0.5~0.34 mm² |
| Contact resistance | <3.0mΩ | <3.0mΩ | <5.0mΩ |
| Cable specification | Ø 7-9 mm | Ø 7-9 mm | Ø 7-9 mm |
| Operating temperature | -40℃ +85℃ | ||
| Protection level | IP68 IPX9K | ||
Overall dimensions of the sealed connector series DH
| Cable plug |
 |
