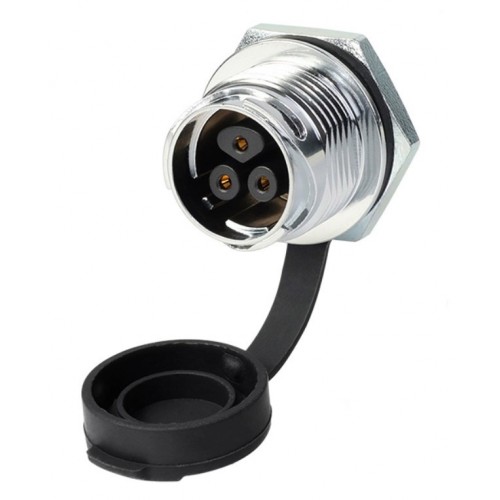

Quick disconnect connector (bayonet) DH-16-J03SX-03-101A - 3-pin sealed panel socket with fastening to the panel - nut behind. It has a mounting diameter of 16 mm - a connector for manual connection, internal installation, connects the circuit 10 A and voltage up to 400 V.
Corresponding part to panel outlet DH-16-J03SX-03-101A - there is a cable plug DH-16-C03PE-03-401
The feature of this connector is quick disconnection, tightness, dust protection, zinc alloy body.
Connectors have protection IP68 - protected against moisture and dust, guaranteed work under water at a depth of 1 m for 30 minutes.
Hermetic connectors of the DH series are very often used in conditions of high humidity and pollution, in the design of unmanned aerial vehicles, robotic equipment, military equipment and medical equipment.
Comparative table of characteristics of DH-16 series connectors
| Number of contacts | 3pin | 4pin | 9pin |
| Rated current, A | 10A | 10A | 5A |
| Working voltage, V | 400V | 400V | 250V |
| Pulse voltage, V | 2000V | 2000V | 1500V |
| Diameter of contacts, mm² | 1.5~1.0 mm² | 1.5~1.0 mm² | 0.5~0.34 mm² |
| Contact resistance | <3.0mΩ | <3.0mΩ | <5.0mΩ |
| Cable specification | Ø 7-9 mm | Ø 7-9 mm | Ø 7-9 mm |
| Operating temperature | -40℃ +85℃ | ||
| Protection level | IP68 IPX9K | ||
Overall dimensions of the sealed connector series DH
| Panel fork |
 |
