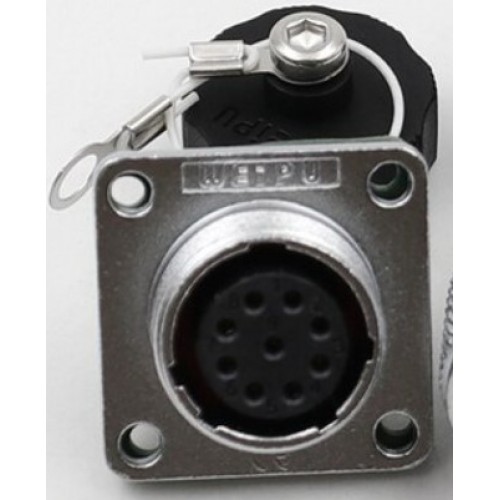

Connector WF16K9Z1 - nine pin sealed panel socket with direct cable outlet. It has a mounting diameter of 16 mm, connects a circuit with a current of up to 5A and a voltage of up to 400V, the wires are fastened by soldering.
The housing of this connector is sealed and Dustproof, made of zinc alloy. Fastening to the panel is carried out with 4 screws. Can be equipped with a protective cover. Has protection - IP67
Contact diameter - 1.0 mm. The connected wire may have a cross-section with a diameter ≤ 0.75 mm2 (AWG ≤ 18).
Weipu WF16 series connectors can be used both indoors and outdoors.
The cost of connectors depends on the quantity, form of payment and delivery time.
| Dimensions, diagram and characteristics of the WF series connectors of the Z panel socket | ||
 |  |  |
| Number of contacts | 9 | |
| ⌀d1 | 15.8 | |
| D | M18x1 | |
| I | 9.7 | |
| L | 21.6 | |
| b | 20 | |
| B | 26 | |
| ⌀d2 | 16.5 | |
| ⌀ | 3.2 | |
| Current, A | 5 | |
| Voltage, V | 400 | |
| Response | |
| WF16K9Z1 | WF16J9TA1 |
WF16J9TN1 | |
WF16J9TH1 | |
WF16J9TE1 | |
WF16J9TI1 | |
WF16J9TU1 | |
WF16J9TV1 | |
WF16J9TW | |
