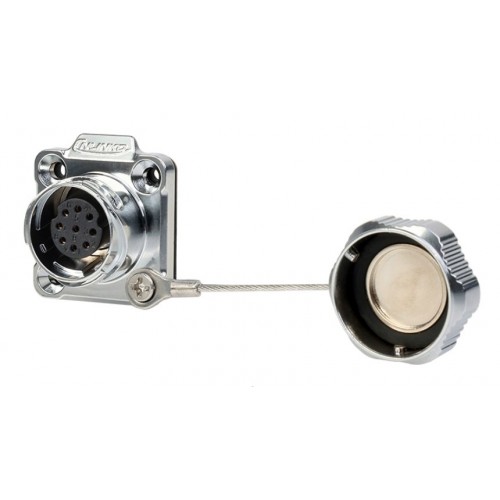

Quick disconnect connector (bayonet) DH-16-J09SX-03-402A - 9-pin hermetic panel socket with fastening to the panel - by 4 screws. It has a mounting diameter of 16 mm - a connector for manual connection, internal installation, connects the circuit 5 A and voltage up to 250 V.
The corresponding part to the panel outlet DH-16-J09SX-03-402A is a cable plug DH-16-C09PE-03-401
The feature of this connector is quick disconnection, tightness, dustproof, zinc alloy body.
Connectors have IP68 protection - protected from moisture and dust, guaranteed to work under water at a depth of 1 m for 30 minutes.
Hermetic connectors of the DH series are very often used in conditions of high humidity and pollution, in the design of unmanned aerial vehicles, robotic equipment, military equipment and medical equipment.
Comparative table of characteristics of DH-16 series connectors
| Number of contacts | 3pin | 4pin | 9pin |
| Rated current, A | 10A | 10A | 5A |
| Working voltage, V | 400V | 400V | 250V |
| Pulse voltage, V | 2000V | 2000V | 1500V |
| Diameter of contacts, mm² | 1.5~1.0 mm² | 1.5~1.0 mm² | 0.5~0.34 mm² |
| Contact resistance | <3.0mΩ | <3.0mΩ | <5.0mΩ |
| Cable specification | Ø 7-9 mm | Ø 7-9 mm | Ø 7-9 mm |
| Operating temperature | -40℃ +85℃ | ||
| Protection level | IP68 IPX9K | ||
Overall dimensions of the sealed connector series DH
| Panel fork |
 |
