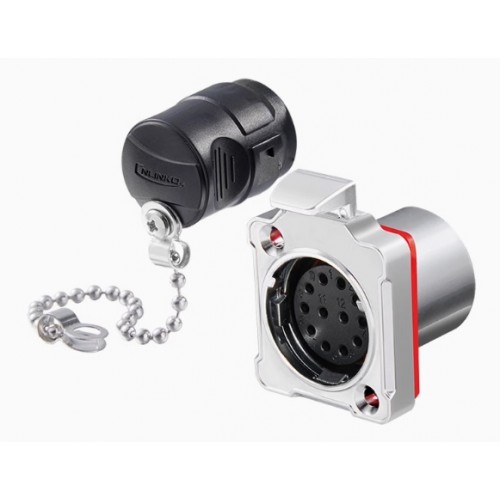

Sealed connector Cnlinko BD-24-J12SX-03-207 – this is an industrial panel socket on 12 contacts, designed for reliable connection of electrical circuits. The connector has a rated current 10A voltage 400V. Cable diameter 1.8mm.
The answering part to the panel socket is a cable plug BD-24-C12PE-03-401
The connector is characterized by high resistance to dust and moisture (protection according to the IP67 standard), which makes it suitable for use in difficult conditions. The housing material is durable, ensuring durability and protection from mechanical damage. The connector has a three-point connection design, which allows for easy and quick connection. The contacts are made of high-quality copper alloy.
BD-24 Connector Parameter Table
| Number of Contacts | 2 | 3 | 4 | 10 | 12 | 19 | 24 | |
| Rated Current, A | 25 | 10 | 5 | |||||
| Operating Voltage, V | 500 | 400 | 250 | |||||
| Short-Term Withstand Voltage, V | 2000 | 1500 | ||||||
| Contact Resistance, mΩ | <1.0 | <3.0 | <5.0 | |||||
| Contact Diameter, mm | 3 | 3 | 3 | 1.8 | 1.8 | 1 | 1 | |
| Operating Temperature | -40℃ ~ +80℃ | |||||||
| Vibration | Frequency: 5-200Hz, amplitude - 5mm, speed 10 m/s | |||||||
| Certificates | IEC61984 and UL1977/2238 | |||||||
| Flame Resistance Level | UL94-V0 | |||||||
| Protection Level | IP67 | |||||||
