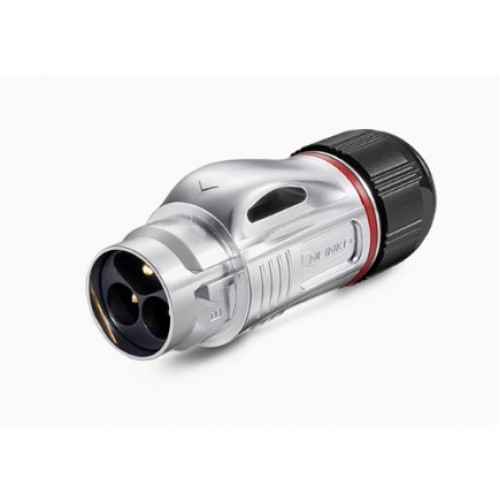

Sealed connector Cnlinko BD-24-C03PE-03-001 – this is industrial cable plug on 3 contacts, designed for reliable connection of electrical circuits. The connector has a rated current 25A voltage 500V. Cable diameter 3mm.
The mating part for the cable plug is a panel socket BD-24-J03SX-03-207
The connector is characterized by high resistance to dust and moisture (protection according to the IP67 standard), which makes it suitable for use in difficult conditions. The housing material is durable, ensuring durability and protection from mechanical damage. The connector has a three-point connection design, which allows for easy and quick connection. The contacts are made of high-quality copper alloy.
BD-24 Connector Parameter Table
| Number of Contacts | 2 | 3 | 4 | 10 | 12 | 19 | 24 | |
| Rated Current, A | 25 | 10 | 5 | |||||
| Operating Voltage, V | 500 | 400 | 250 | |||||
| Short-Term Withstand Voltage, V | 2000 | 1500 | ||||||
| Contact Resistance, mΩ | <1.0 | <3.0 | <5.0 | |||||
| Contact Diameter, mm | 3 | 3 | 3 | 1.8 | 1.8 | 1 | 1 | |
| Operating Temperature | -40℃ ~ +80℃ | |||||||
| Vibration | Frequency: 5-200Hz, amplitude - 5mm, speed 10 m/s | |||||||
| Certificates | IEC61984 and UL1977/2238 | |||||||
| Flame Resistance Level | UL94-V0 | |||||||
| Protection Level | IP67 | |||||||
