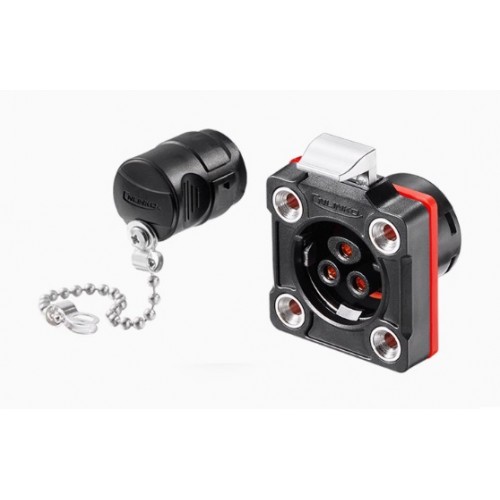

Sealed connectorCnlinko BD-20-J03SX-02-401 is an industrial panel socket 3 pins, designed for reliable connection of electrical circuits. The connector has a rated current of 20A and a voltage of 500V. Cable diameter 2.7mm.
Match to panel socket - cable plug BD-20-C03PE-02-001
The connector is highly resistant to dust and moisture (protection according to the standard IP67), making it suitable for use in harsh environments. The case material is durable, providing durability and protection from mechanical damage. The connector has a three-point-connection design, allowing for easy and quick connection. The contacts are made of high quality copper alloy.
BD-20 Connector Parameter Table
| Number of Contacts | 2 | 3 | 4 | 5 | 7 | 9 | 12 | 14 |
| Nominal Current, A | 20 | 10 | 5 | |||||
| Working Voltage, V | 500 | 500 | 250 | |||||
| Short-Term Withstand Voltage, V | 2000 | 1500 | ||||||
| Contact Resistance, mΩ | <1.0 | <3.0 | <5.0 | |||||
| Contact Diameter, mm | 2.7 | 2.7 | 2.7 | 1.8 | 1.8 | 1.0 | 1.0 | 1.0 |
| Operating Temperature | -40℃ ~ +80℃ | |||||||
| Vibration | Frequency: 5-200Hz, Amplitude - 5mm, Speed 10 m/s | |||||||
| Certifications | IEC61984 and UL1977/2238 | |||||||
| Flame Retardant Level | UL94-V0 | |||||||
| Protection Level | IP67 | |||||||
